Aire Frameset
Frames & Forks
Framesets Aire Frameset
visa maestro mastercard klarna
• Products in stock are shipped in 24 hours to 7 working days.

All aftermarket frames are available with the full range of Volcano Steering line.

Choose to refresh your setup to the max and save 25% from individual parts purchase.

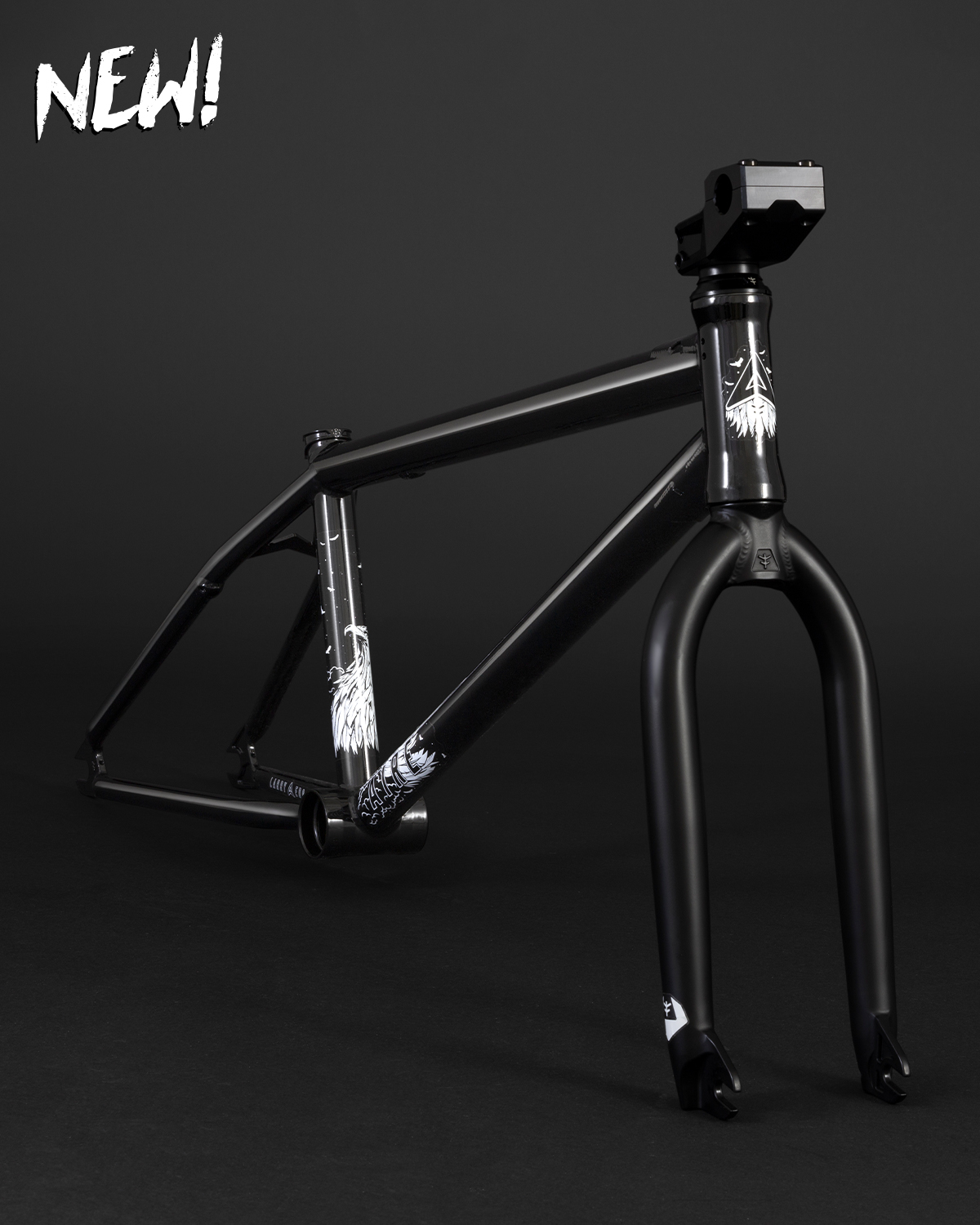

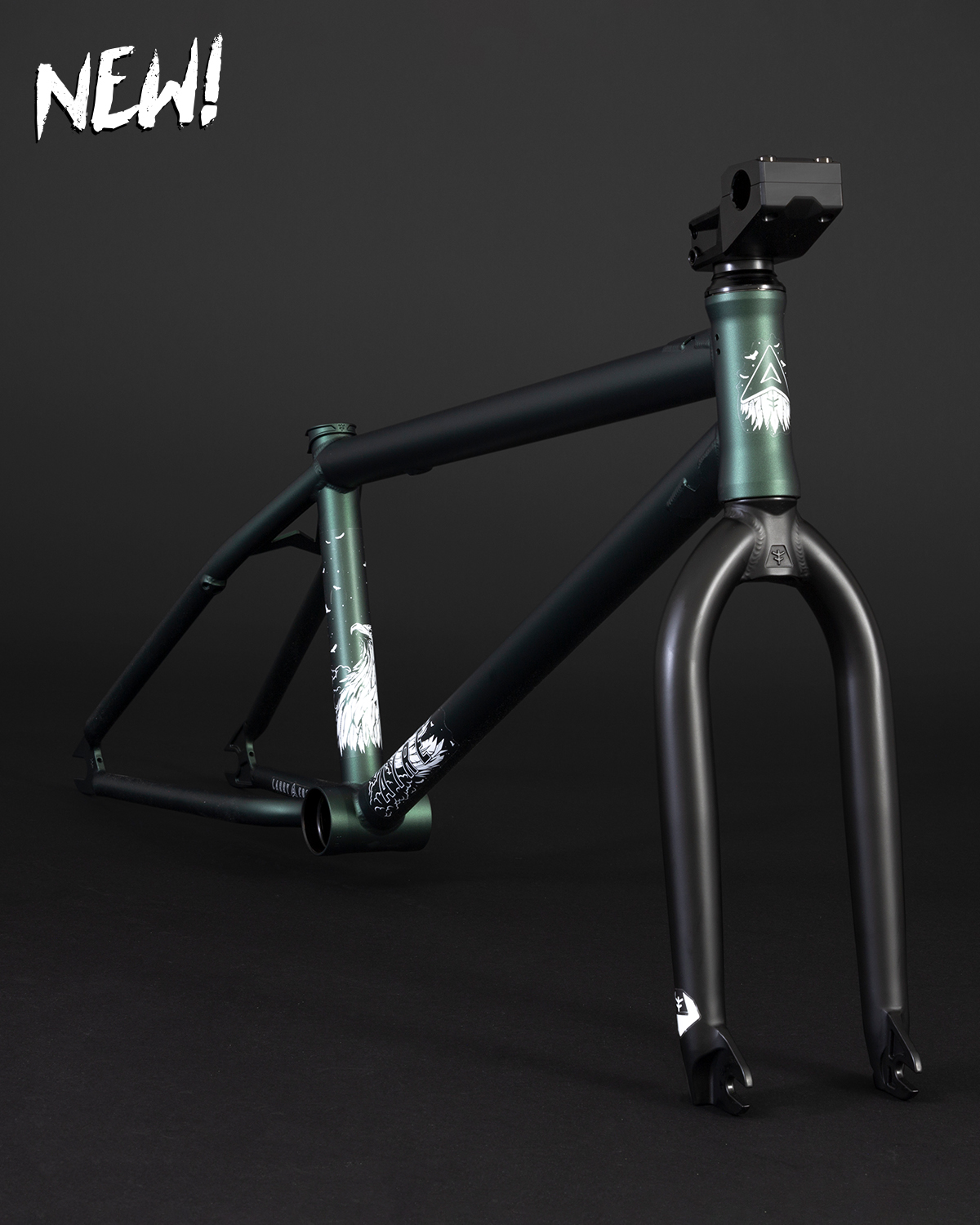

The Aire Frameset includes: Aire Frame (Larry Edgar signature), Volcano Forks in 30 or 33mm Offset, Volcano Stem 25M, and Volcano 15 Headset.

Aire Frame, Volcano Forks, and Volcano Stem come with a Lifetime Warranty.

SPECIFICATIONS

Aire Frameset Specs
  • Aire Frame
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Stays Bridges Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Gussets Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Head Tube
    74.5º
  • Seat Tube
    71º
  • Rear End 21" / 21.8" TT
    13.8" Slammed
  • Rear End 20.8" TT
    13" Slammed
  • Standover
    9.25"
  • Bottom Bracket Height
    11.50"
  • Top Tube
    20.8" / 21.8
  • Head Tube Height
    113 mm / 4.45"
  • Brake System
    EBS / Seatstays
  • Bottom Bracket System
    MID
  • Weight 21" TT
    2.480 grs. / 5.47 lb
  • Volcano Forks
  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    28mm / 33mm
  • Weight
    1.049g / 2.31 lb (Top bolt included)
  • Volcano 25 Stem
  • Body Material
    CNC Machined / 6061-T6 Aluminum
  • Bolts Material
    4130 CrMo / Heat Treated
  • Rise
    25 mm
  • Reach
    M: 50mm
  • Width
    M: 47 mm
  • Weight
    281 g / 9.9 oz
  • Volcano Headset
  • Cup Material
    6061-T6 Aluminum CNC Machined
  • Spacer Material
    6061-T6 Aluminum CNC machined
  • Top Cap Height
    15mm I From Top of Bearing to Top of Cap
  • Bearings
    Fly designed precision bearings
  • Weight
    65 grs / 2.2 Oz
