Aire Frame
Frames & Forks
Frames Aire Frame
paypal visa maestro mastercard klarna

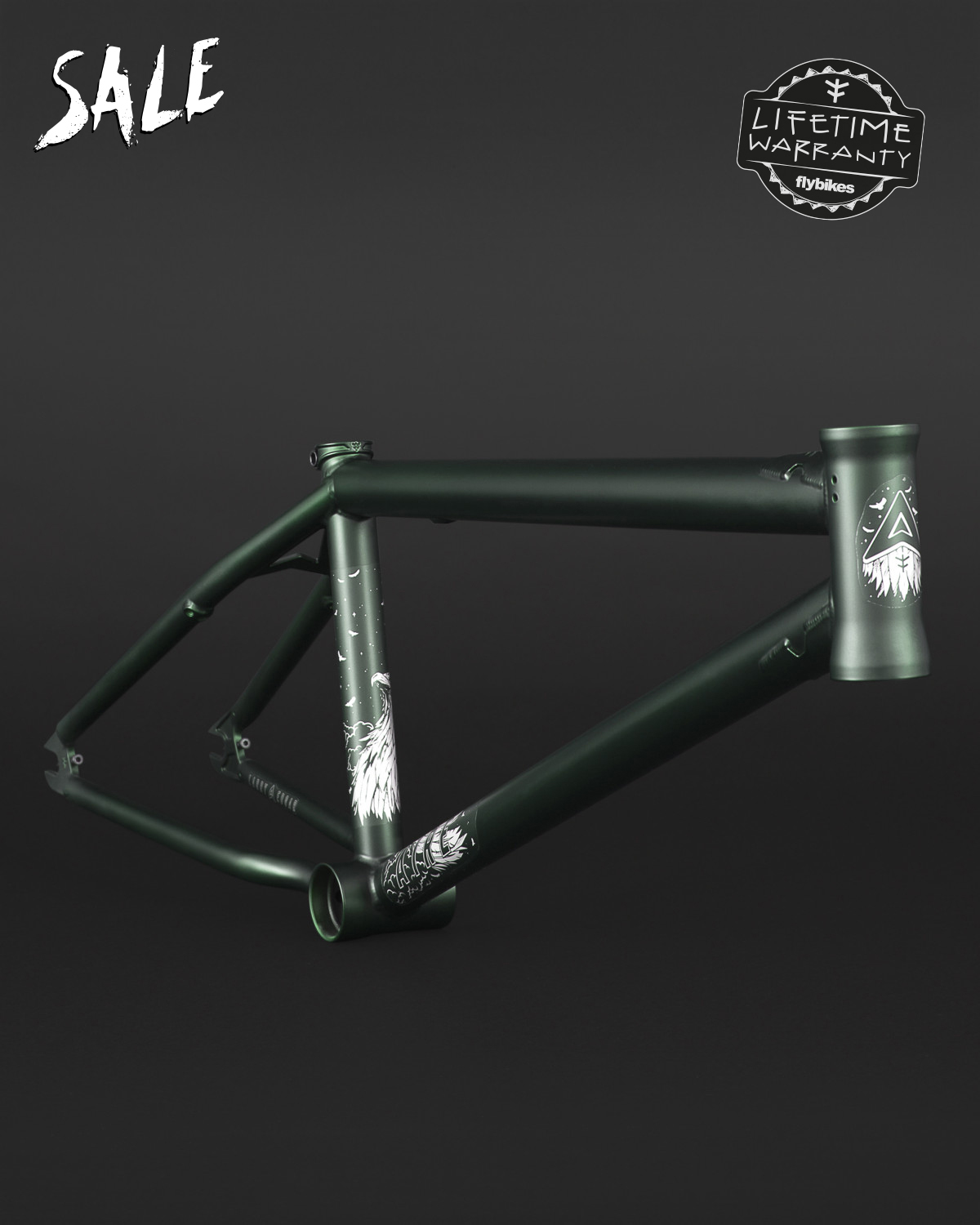

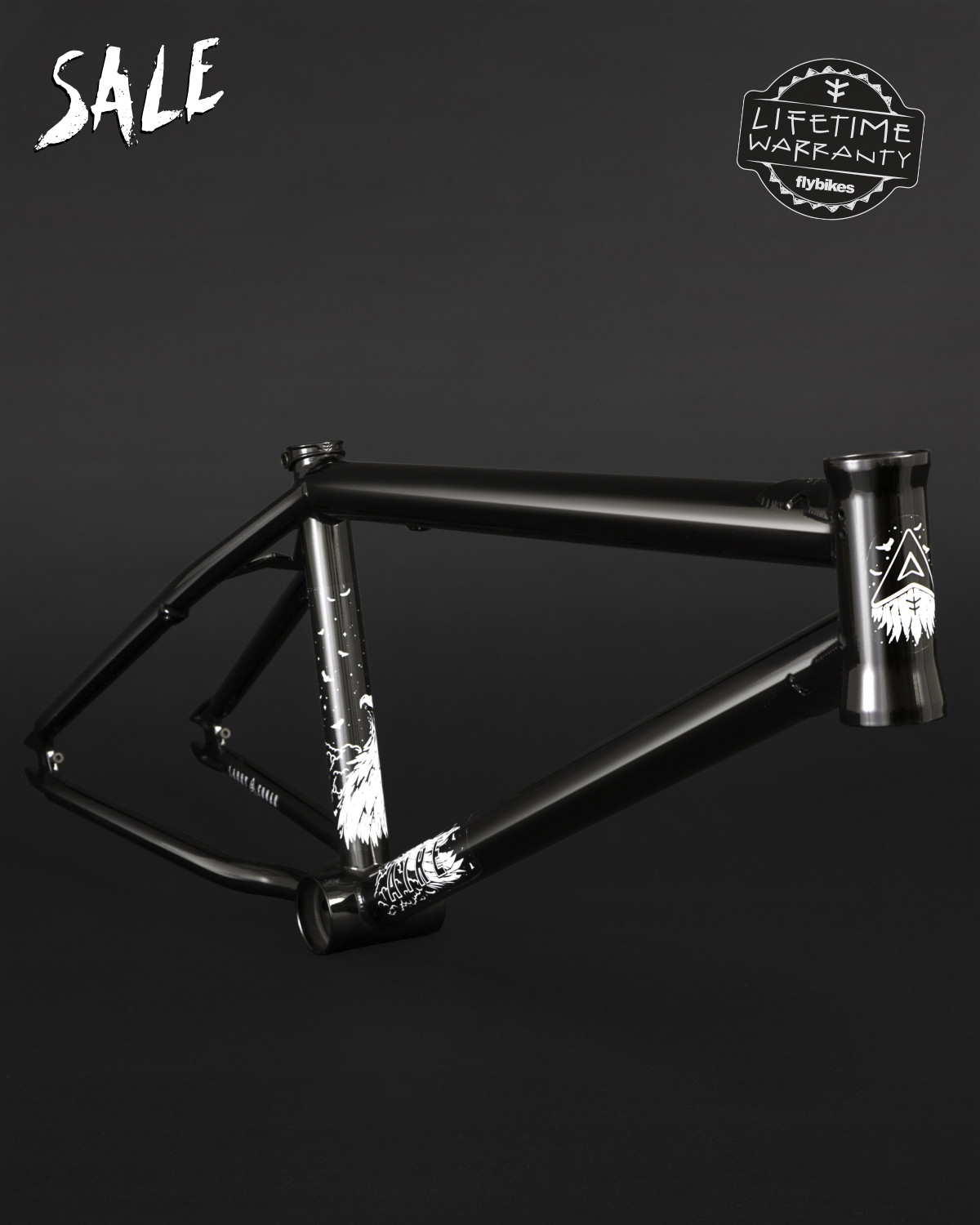

Larry Edgar’s signature Aire frame was designed to go big and fast! Made from full 4130 Cr-Mo with tubing specs designed to help reduce the overall weight without sacrificing strength, the frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, EBS removable brake mounts and 6mm thick Investment Cast Dropouts with integrated chain tensioners.
Available in a 20.8" size with 13" chainstays, or 21" and 21.8" sizes with a 13.8" chainstays.
• 100% Secure payment.
• Products in stock delivered in 24 hours to 7 working days.
• This product is covered with Lifetime Warranty.
• EBS Brake kit NOT included
• Replacement stickers included

SPECIFICATIONS

Aire Frame Specs
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Stays Bridges Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Gussets Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Head Tube
    74.5º
  • Seat Tube
    71º
  • Rear End 21" / 21.8" TT
    13.8" Slammed
  • Rear End 20.8" TT
    13" Slammed
  • Standover
    9.25"
  • Bottom Bracket Height
    11.50"
  • Top Tube
    20.8" / 21" / 21.8
  • Head Tube Height
    113 mm / 4.45"
  • Brake System
    EBS / Seatstays
  • Bottom Bracket System
    MID
  • Weight 21" TT
    2.480 grs. / 5.47 lb
