Sierra Frameset
Frames & Forks
Framesets Sierra Frameset
visa maestro mastercard klarna
• Products in stock same-day to 5 working days shipping.

All aftermarket frames are available with the full range of Volcano Steering line.

Choose to refresh your setup to the max and save 25% from individual parts purchase.

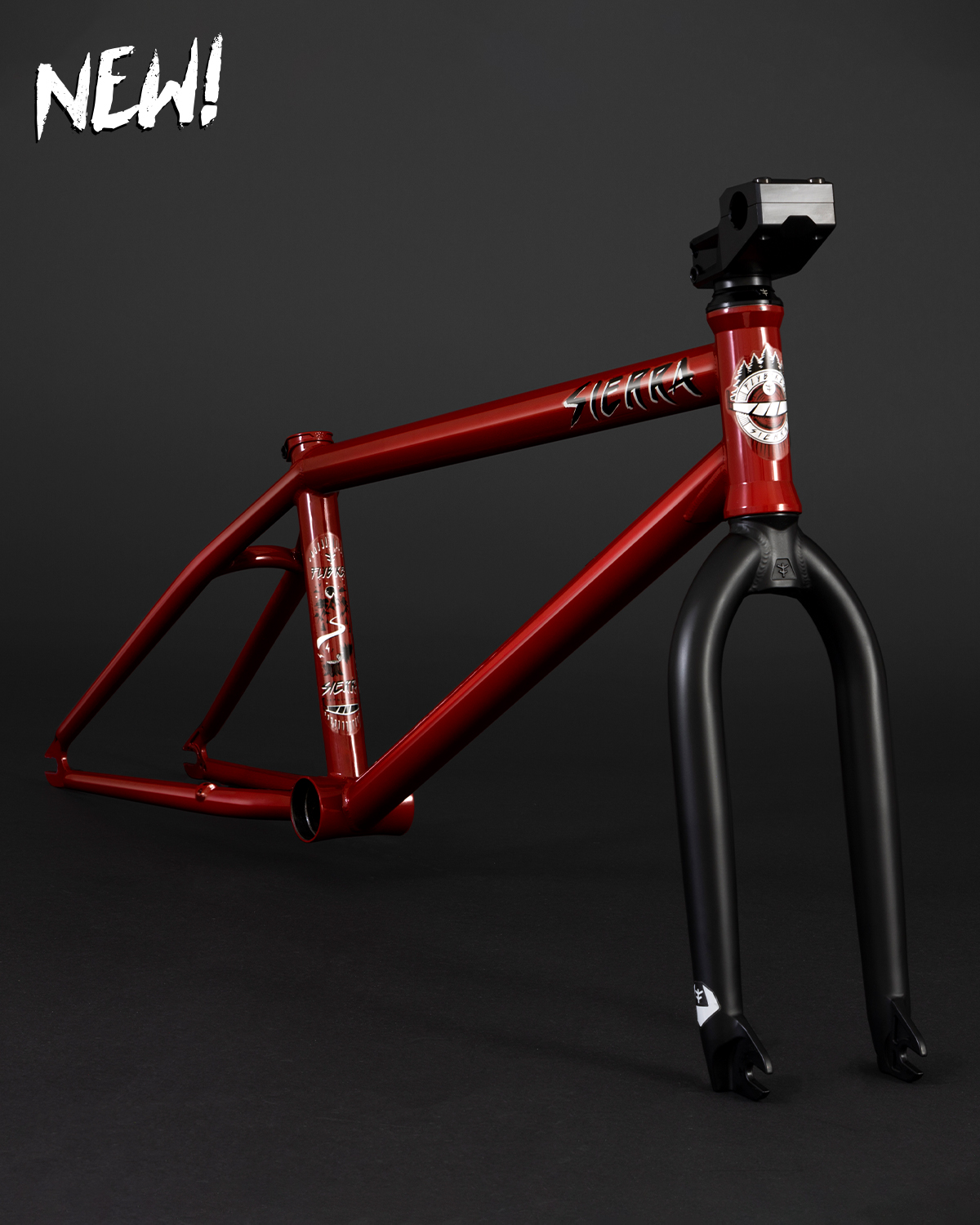

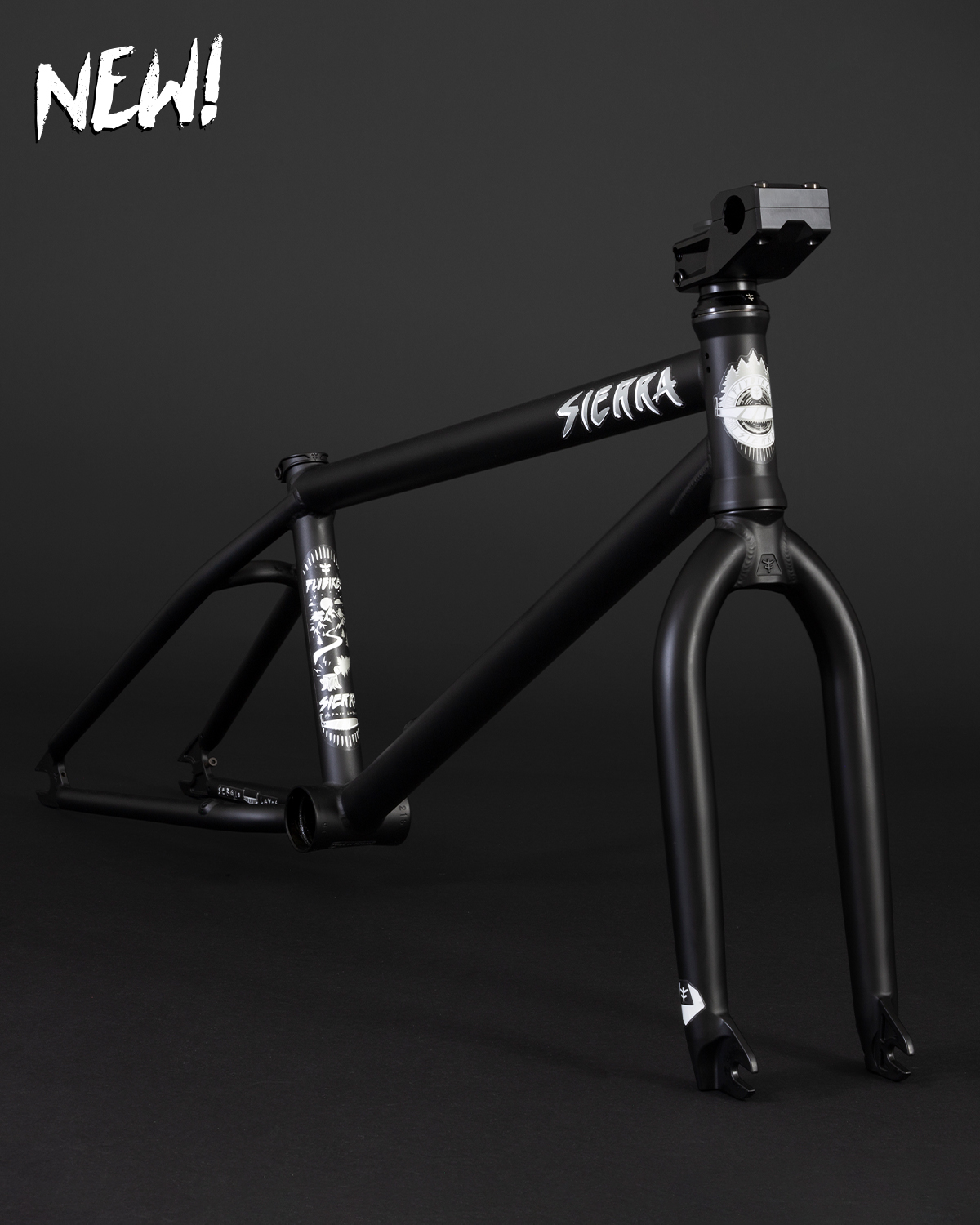

The Sierra Frameset includes: Sierra Frame (Sergio Layos signature), Volcano Forks in 30 or 33mm Offset, Volcano Stem 25M, and Volcano 15 Headset.

Sierra Frame, Volcano Forks, and Volcano Stem come with a Lifetime Warranty.

SPECIFICATIONS

Sierra Frameset Specs

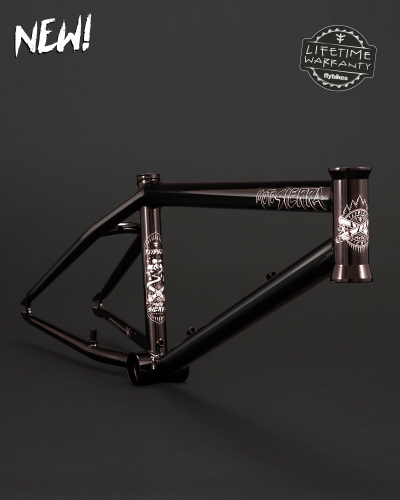

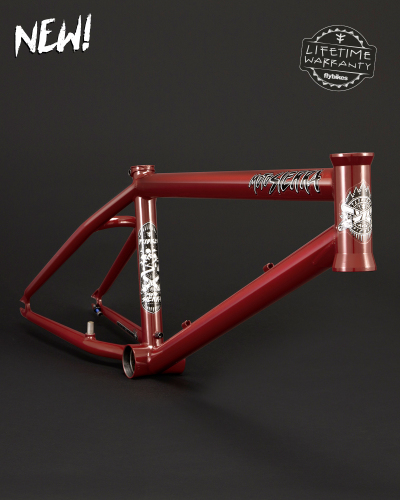

  • Sierra Frame
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seatstays Bridge Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Top Tube
    20.6" / 21" / 21.4"
  • Head Tube
    75º
  • Seat Tube
    71º
  • Rear End
    13.6"
  • Standover
    8.75"
  • Bottom Bracket Height
    11.5"
  • Head Tube Length
    113 mm / 4.45"
  • Brake System
    EBS / Chainstays
  • Weight 21"
    2.200 kg / 4.85 lb
  • Volcano Forks
  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    28mm / 33mm
  • Weight Black
    1.049g / 2.31 lb (Top bolt included)
  • Volcano 25M Stem
  • Body Material
    CNC Machined / 6061-T6 Aluminum
  • Bolts Material
    4130 CrMo / Heat Treated
  • Rise
    25 mm
  • Reach
    M: 50mm
  • Width
    M: 47 mm
  • Weight
    281 g / 9.9 oz
  • Volcano 15 Headset
  • Cup Material
    6061-T6 Aluminum CNC Machined
  • Spacer Material
    6061-T6 Aluminum CNC machined
  • Top Cap Height
    15mm I From Top of Bearing to Top of Cap
  • Bearings
    Fly designed precision bearings
  • Weight
    65 grs / 2.2 Oz
