Sierra Frame
Frames & Forks
Frames Sierra Frame
paypal visa maestro mastercard klarna
Please, note that shipping of some variants of this product could be delayed due to the high demand and the number of orders we are currently processing.

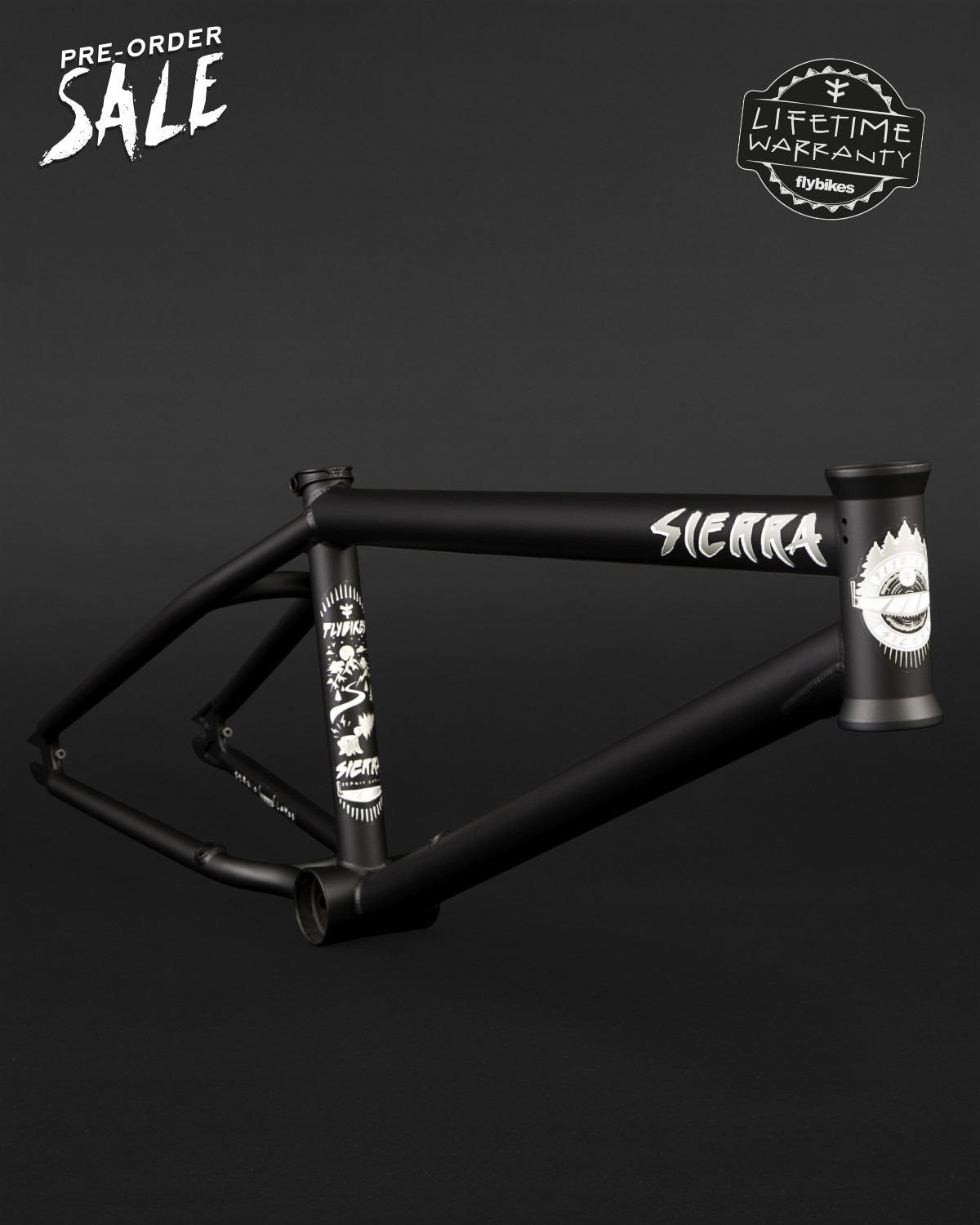

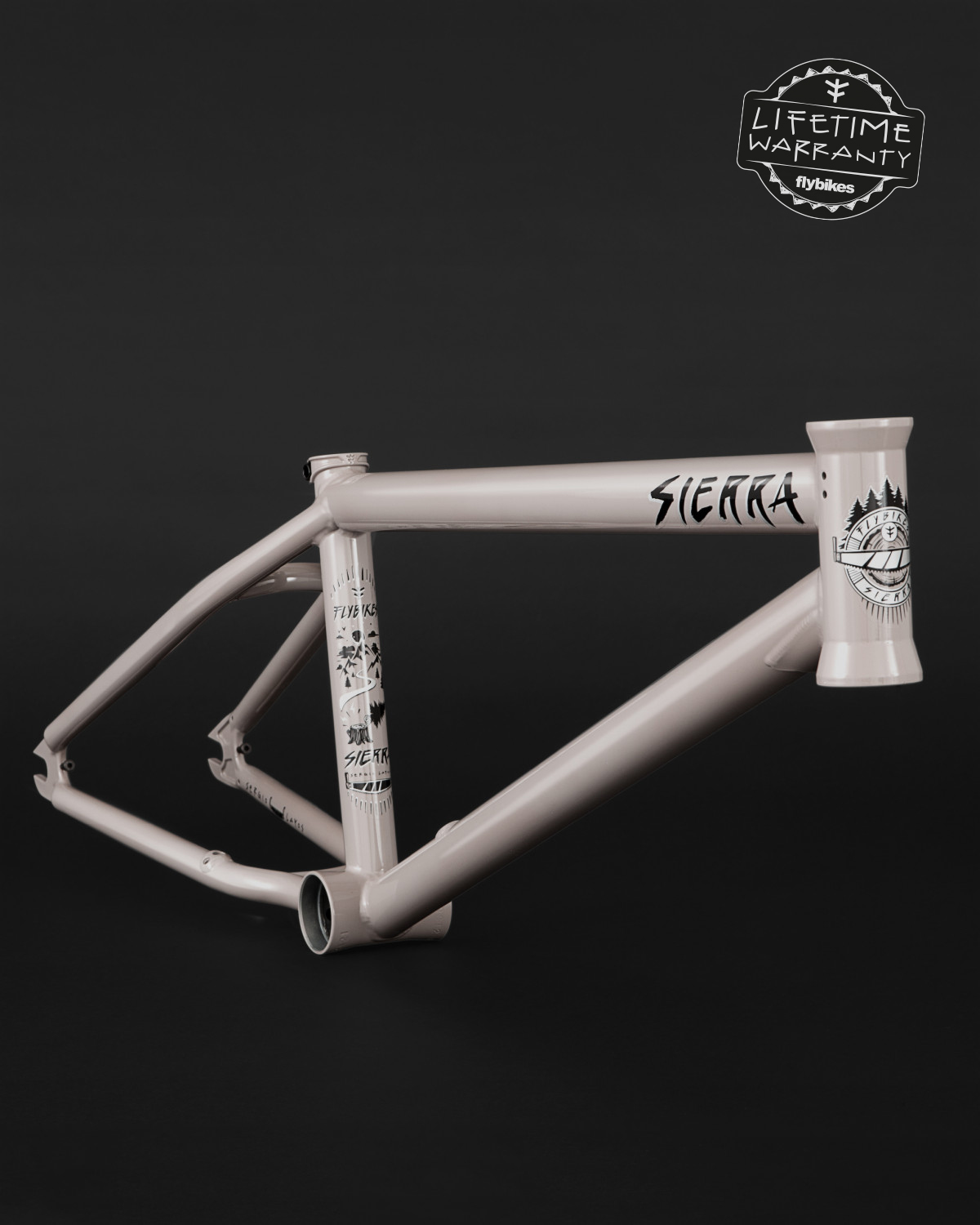

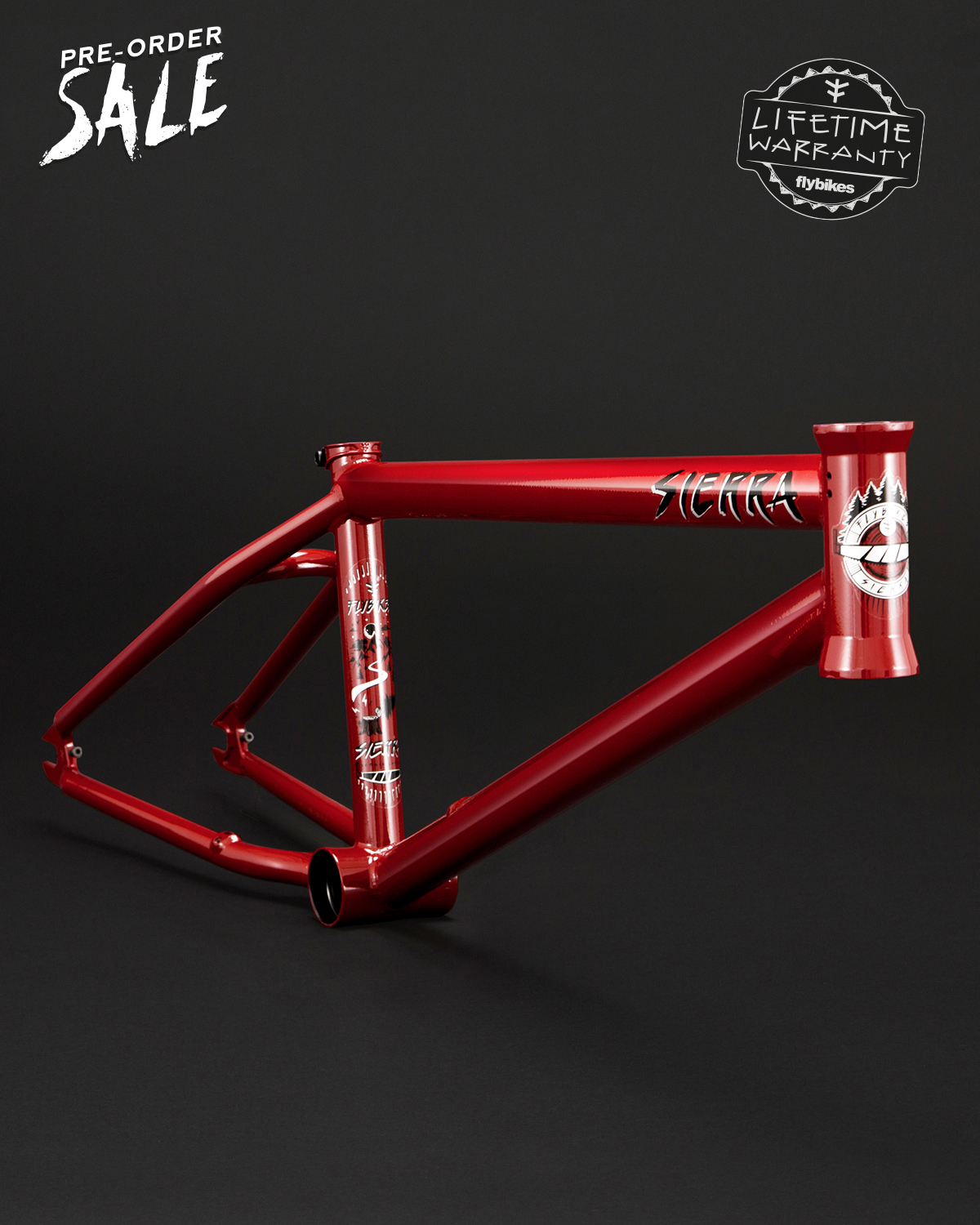

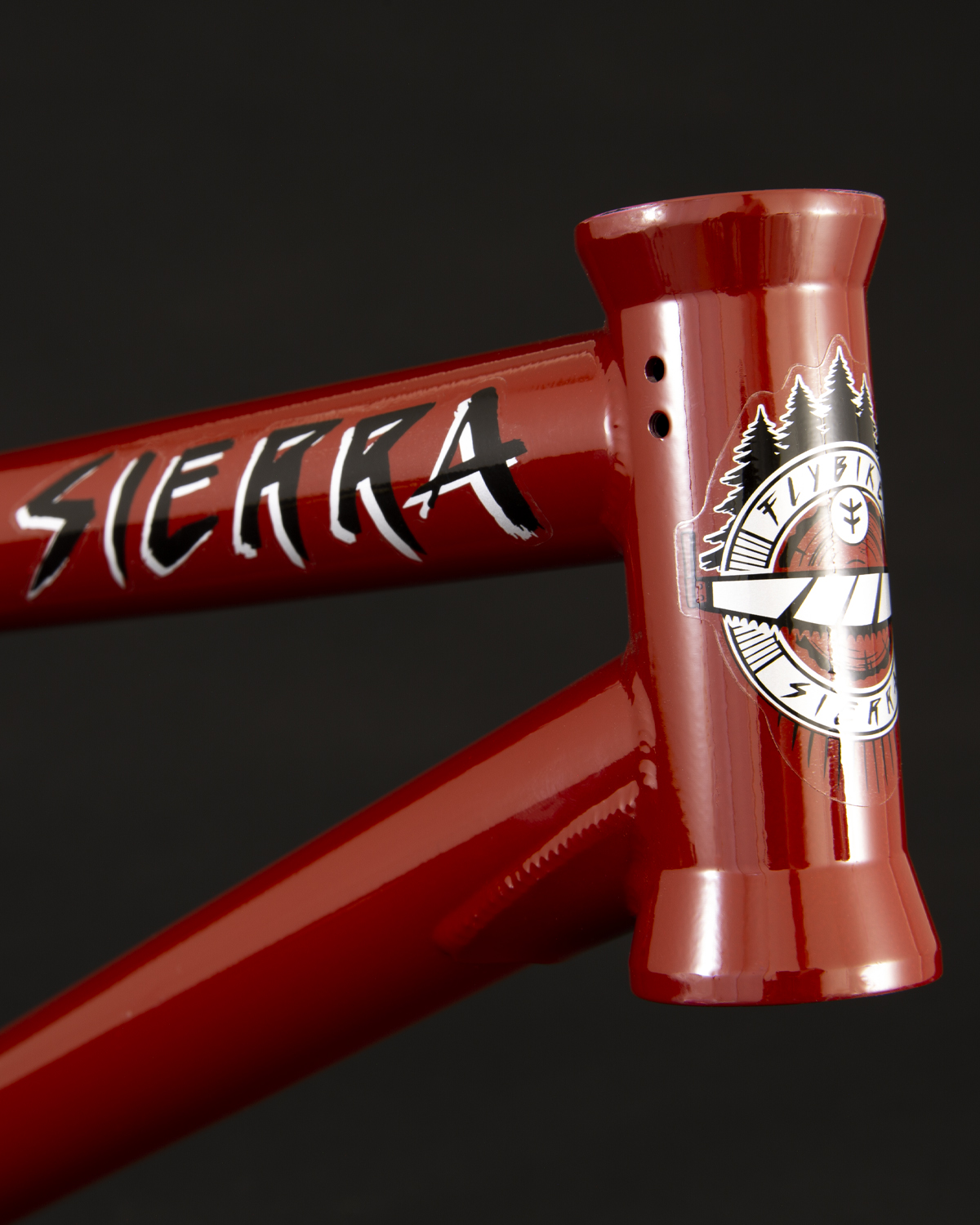

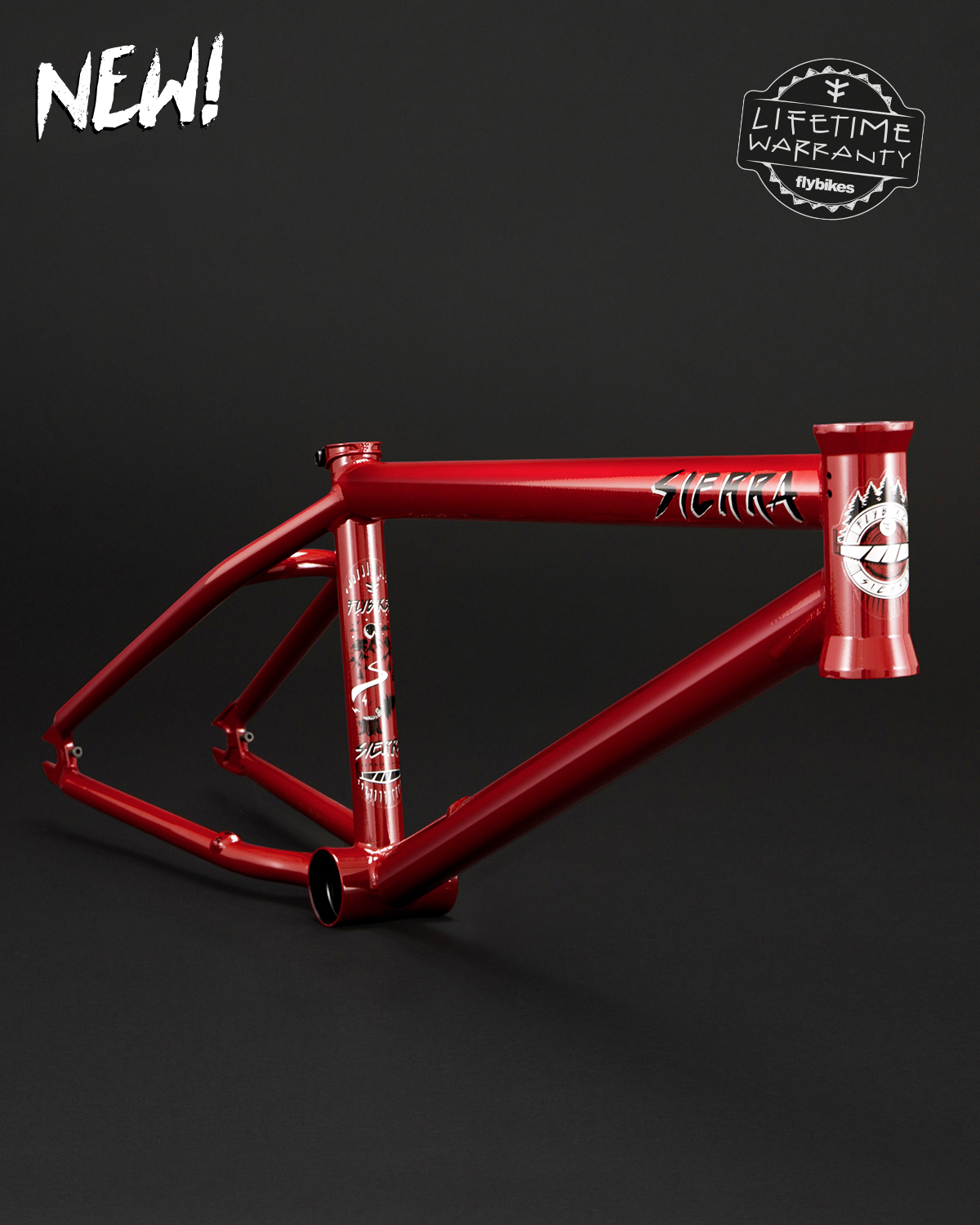

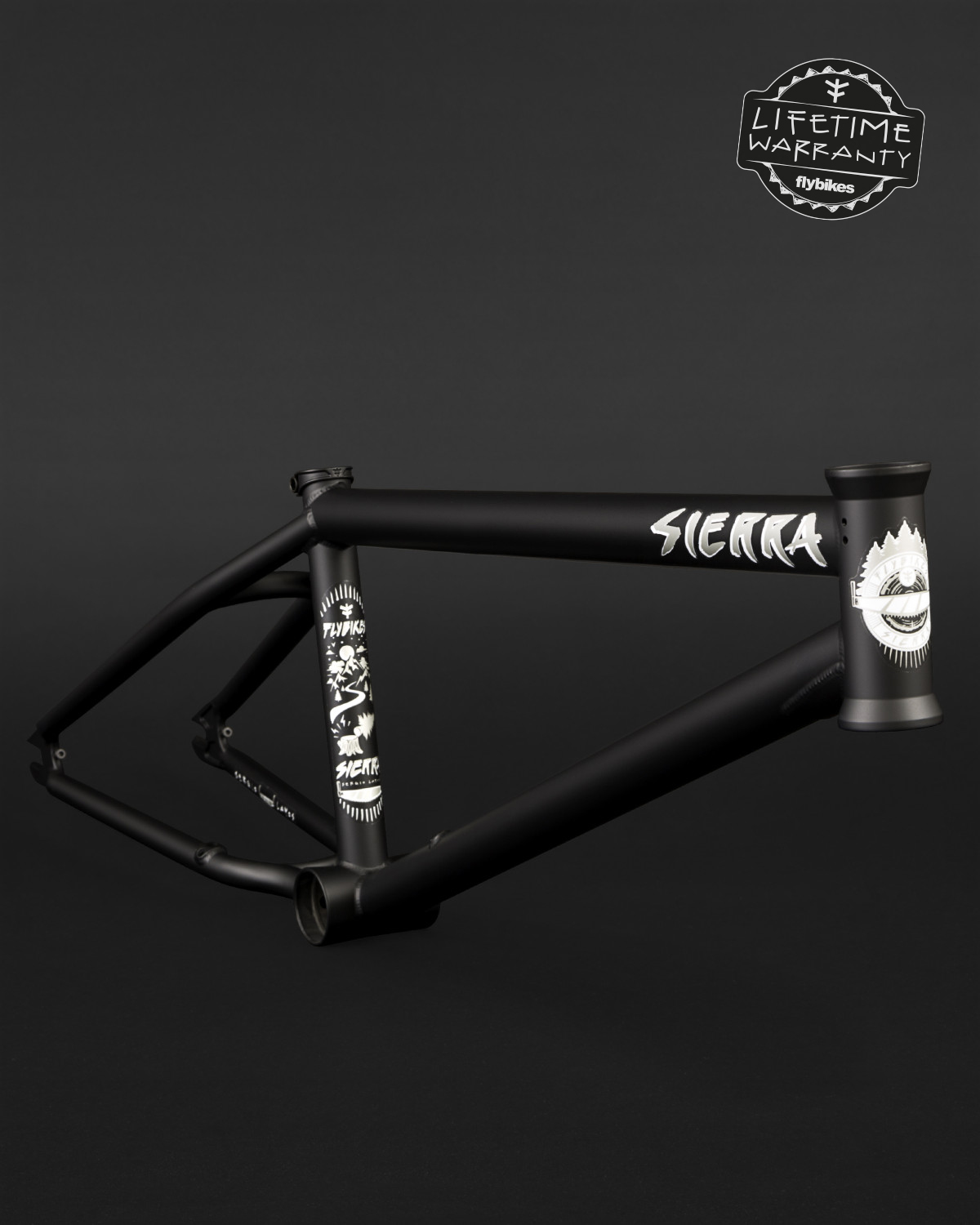

The Sergio Layos' signature Sierra frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, removable EBS style brake mounts and Investment Cast Dropouts with integrated chain tensioners.
• 100% Secure payment.
• Products in stock delivered in 24 hours to 7 working days.
• This product is covered with Lifetime Warranty.
• EBS Brake kit NOT included.
• Replacement stickers included.

SPECIFICATIONS

Sierra Frame Specs
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seatstays Bridge Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Top Tube
    20.6" / 21" / 21.4"
  • Head Tube
    75º
  • Seat Tube
    71º
  • Rear End
    13.6"
  • Standover
    8.75"
  • Bottom Bracket Height
    11.5"
  • Head Tube Length
    113 mm / 4.45"
  • Brake System
    EBS / Chainstays
  • Weight 21"
    2.200 kg / 4.85 lb
