The hub features 10mm. / 3/8" bolt on drive side with 14mm. OD section to fit the dropout.
Only works with dropouts 6mm. and thicker. For thinner dropouts, a 14mm. ID washer is required.
Female version is not suitable for peg use on the drive side.

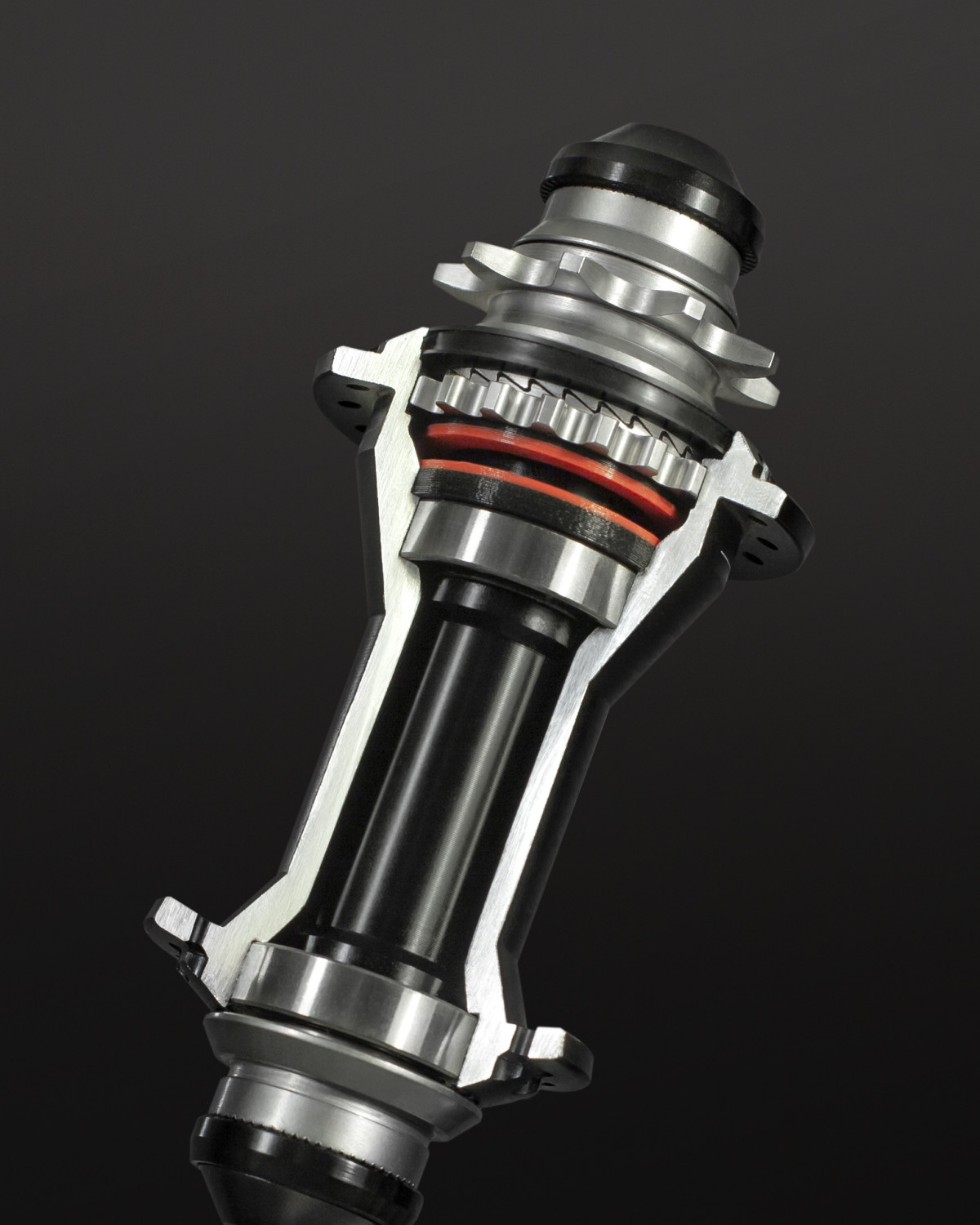

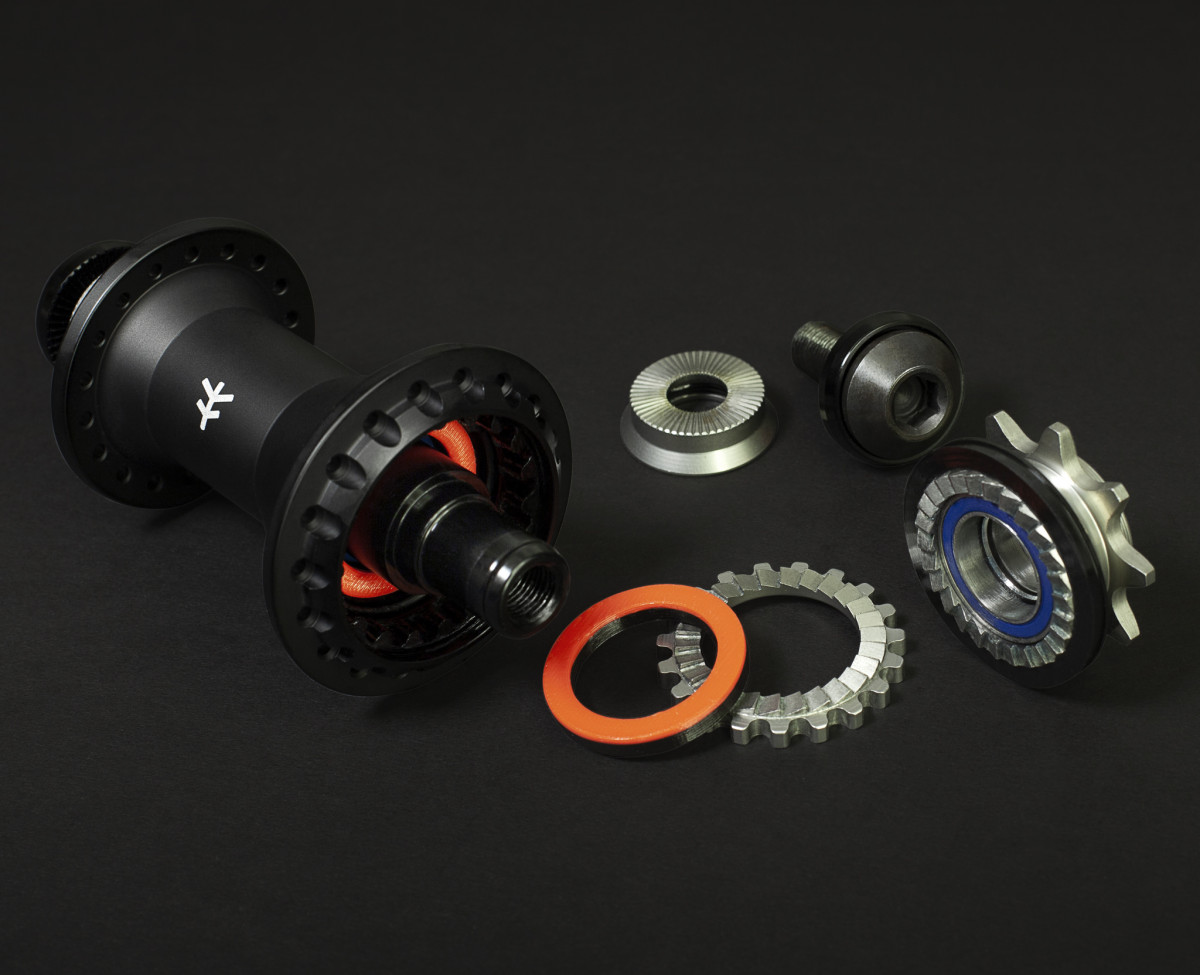

The simplicity of the system is also great for customization. The Magneto cassette features ONLY ONE moving part, the assembly is as easy as it can get and reduces the overall weight significantly.
We are using heat treated CrMo caps instead of aluminum to be stiff and avoid wobble that can form over time and they are CNC machined outside and inside to achieve almost the same weight.
The shell is made of a much stronger 7075 Aluminum and features the sunken spoke holes that we created with our Classic Front Hub.
The driver, end caps and bolts use an anti-rust process that also gives the hub an awesome color finish.

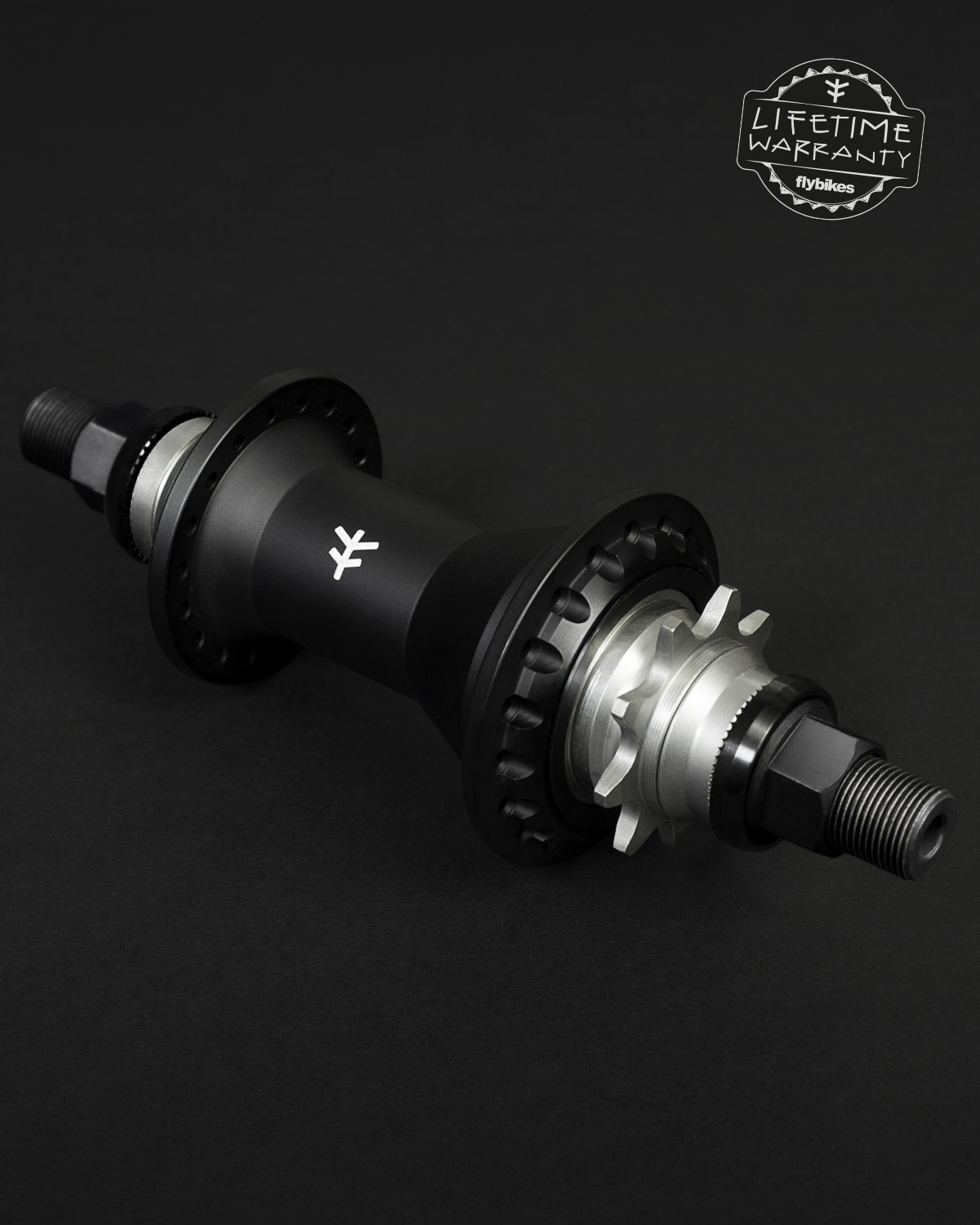

Magneto Cassette Hub Male Specs:
Magneto magnetic engage system
7075-T6 Aluminum shell with recessed spoke holes design
Heat treated CrMo driver, caps & bolts with anti-rust treatment
Internally & externally machined CNC CrMo caps
Compatible with Magneto Hub Guards
Drive Side Nylon guard available
Weight CrMo Male axle: 475 gr / 16.7 oz.
Drive Side Flange Diameter: 48mm / 8mm Spokes
Non-Drive Side Flange Diameter: 41mm / 8mm Spokes
Non-Drive Side Offset: 19mm
Magneto Cassette to Lunar Rim: 184mm Drive Side / 186mm Non-Drive Side
Magneto Cassette to Lunar X Lace Rim: 188mm Drive Side / 190mm Non-Drive Side
