Motosierra Frameset
Frames & Forks
Framesets Motosierra Frameset
paypal visa maestro mastercard klarna
All aftermarket frames are available with the full range of Volcano Steering line.

Choose to refresh your setup to the max and save 25% from individual parts purchase.

The Motosierra Frameset includes: Motosierra Frame (Sergio Layos signature), Volcano Forks in 30 or 33mm Offset, Volcano Stem 25L, and Volcano 15 Headset.

Motosierra Frame, Volcano Forks, and Volcano Stem come with a Lifetime Warranty.

SPECIFICATIONS

Motosierra Frameset Specs

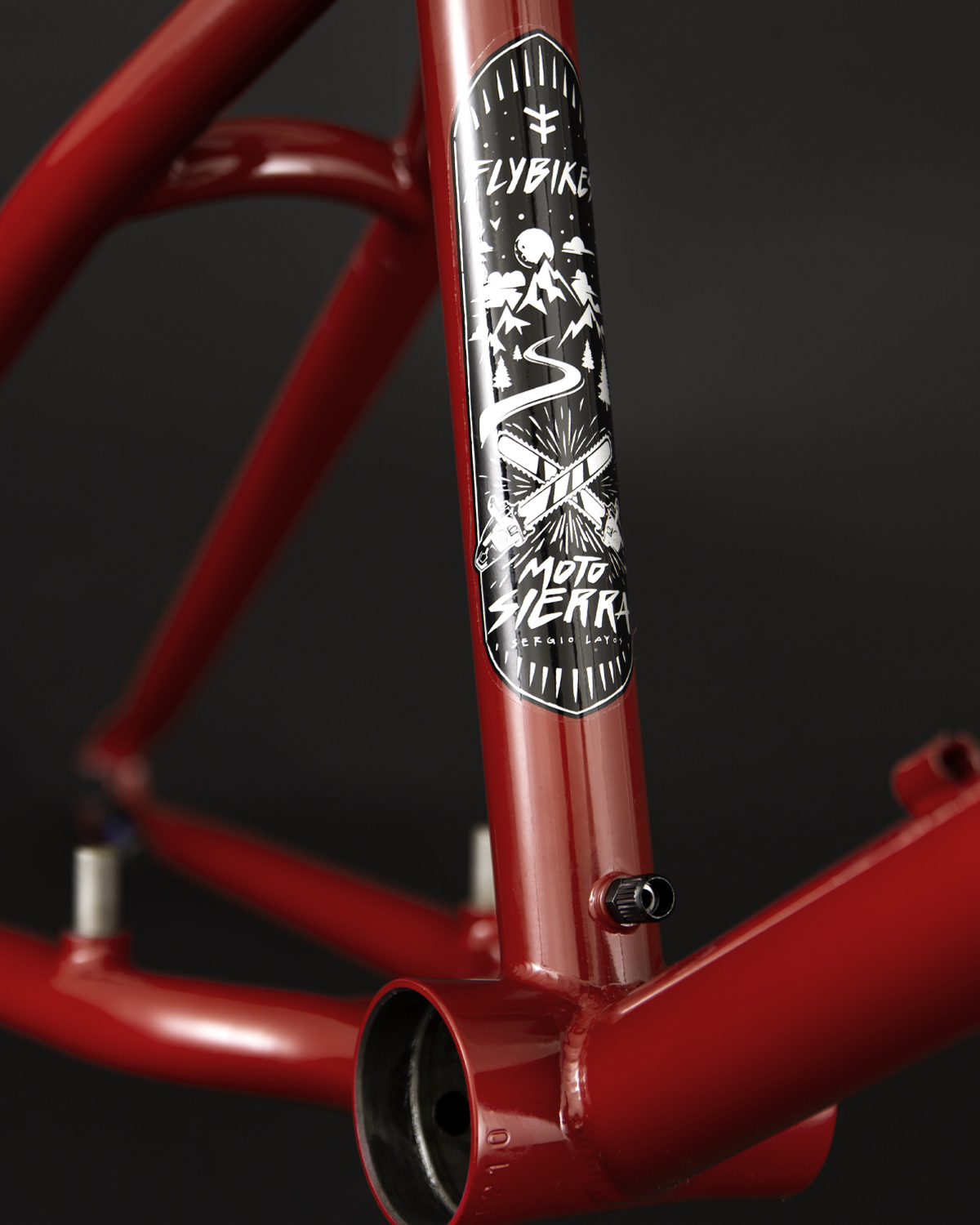

  • Motosierra Frame
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted
  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated
  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB
  • Dropouts
    10mm Axle / Invest Casting / 4130 CrMo / Heat Treated w/ 1pc. Removable Chain Tensioner
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seatstays Bridge Material
    4130 CrMo / Heat Treated
  • Top Tube
    21" / 21.4" / 21.8"
  • Head Tube
    74º
  • Seat Tube
    71º
  • Rear End
    14" Slammed
  • Standover
    9.25"
  • Bottom Bracket Height
    11.5"
  • Head Tube Length
    120 mm / 4.7"
  • Brake System
    Welded / Cable Trough Seat Tube / Chainstays
  • Weight 21"
    2.200 kg / 4.85 lb
  • Volcano Forks
  • Legs Material
    4130 CrMo / Seamless / Sanko Triple Butted
  • Dropouts Material
    Invest Casting / 4130 CrMo
  • Steer Tube Material
    CNC Machined / 4130 CrMo
  • Treatment
    Full Post Welding Heat Treated
  • Top Bolt Material
    CNC Machined / 7075 T6 Aluminum
  • Offset
    30 mm / 33mm
  • Weight Black
    1.049g / 2.31 lb (Top bolt included)
  • Volcano 25M Stem
  • Body Material
    CNC Machined / 6061-T6 Aluminum
  • Bolts Material
    4130 CrMo / Heat Treated
  • Rise
    25 mm
  • Reach
    M: 50mm
  • Width
    M: 47 mm
  • Weight
    281 g / 9.9 oz
  • Volcano 15 Headset
  • Cup Material
    6061-T6 Aluminum CNC Machined
  • Spacer Material
    6061-T6 Aluminum CNC machined
  • Top Cap Height
    15mm I From Top of Bearing to Top of Cap
  • Bearings
    Fly designed precision bearings
  • Weight
    65 grs / 2.2 Oz
