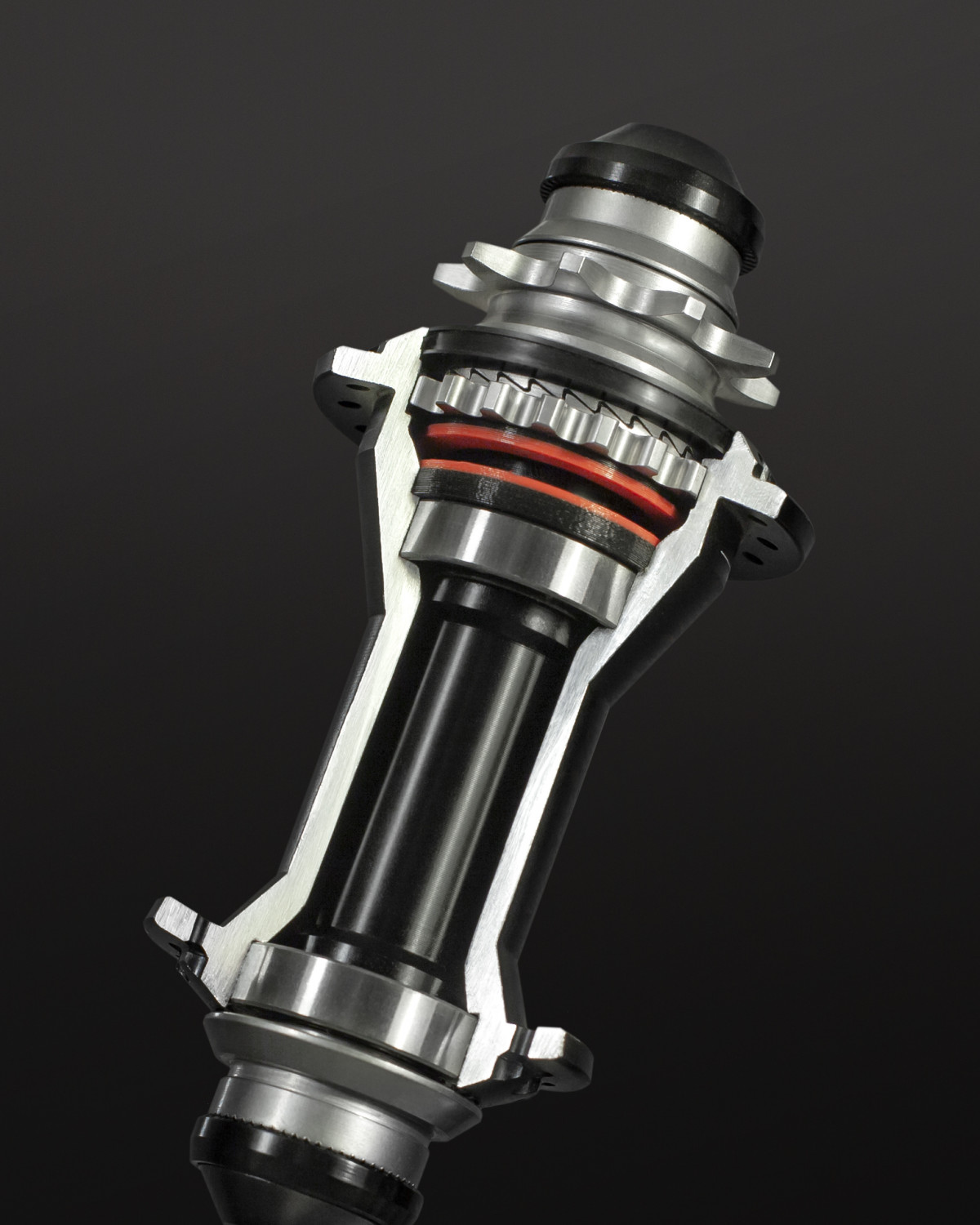

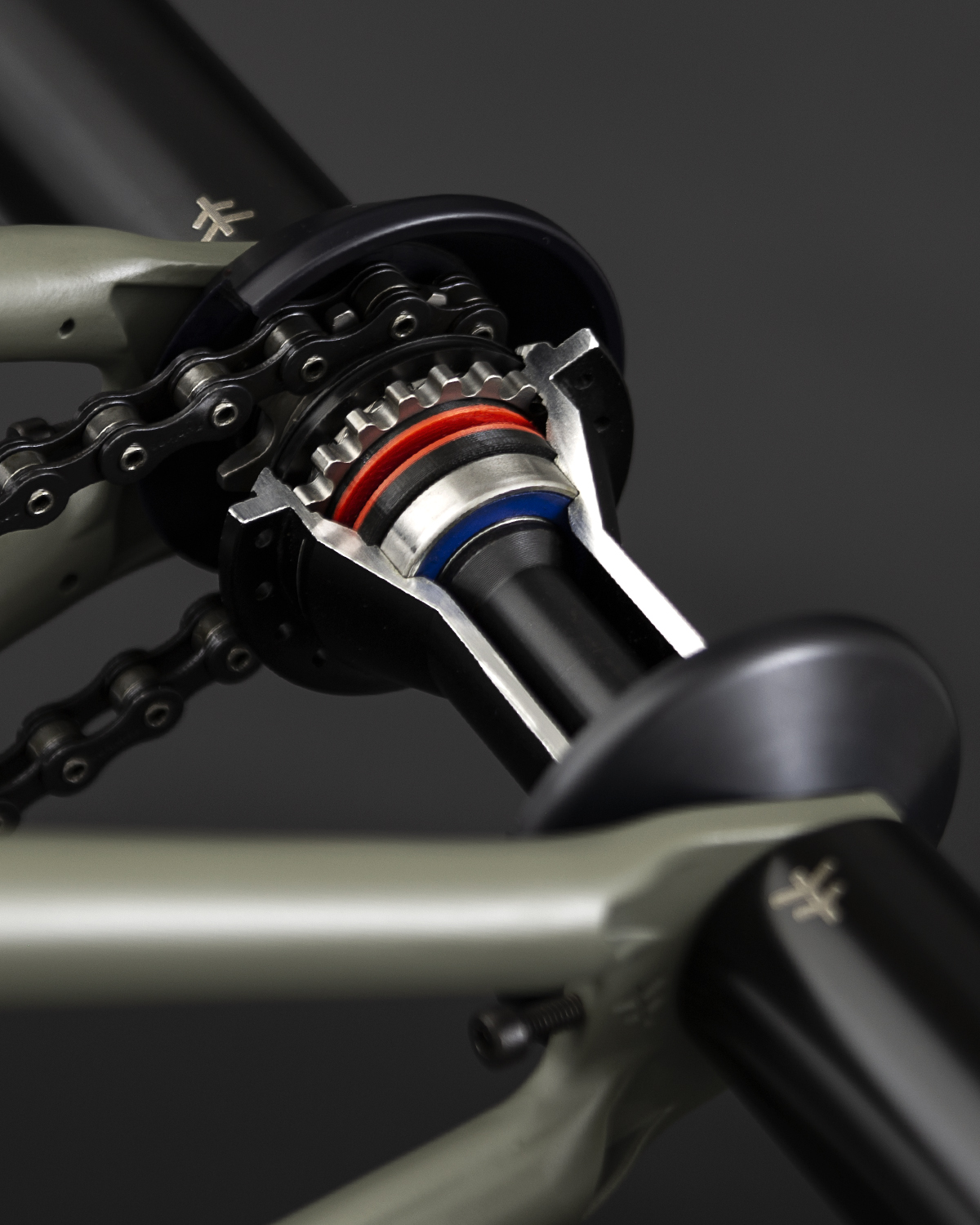

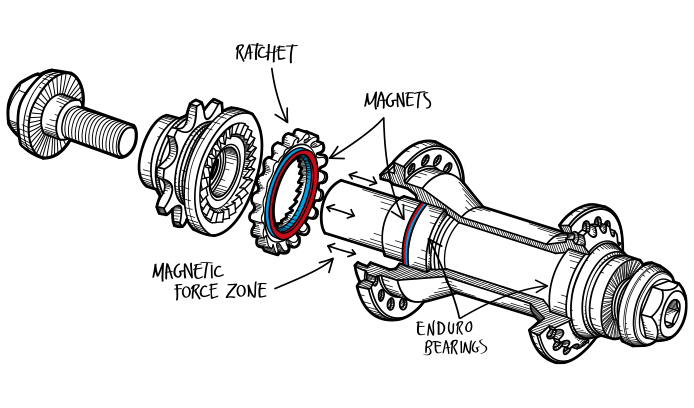

The Magneto Cassette features a magnetic system engage using the force of two magnets that allow the ratchet ring to engage. The magnetic field provides an even repelling force, making the ratchet work completely straight and reducing friction compared to springs system. The Neomidium magnets maintain the magnetic field pretty much forever, as well. These properties create the fastest, most reliable and most durable system possible. Not to mention, the unique and powerful noise...
Female Magneto hubs (Except M10 version) are designed for 6mm. dropouts or thicker. For frames with thinner dropouts will require a washer between the dropout and the Magneto bolt washer.
• Aluminum Female Axle version is NOT SUITABLE FOR PEGS USE
• CrMo Female Axle version is NOT SUITABLE FOR PEGS USE ON DRIVE SIDE.
• Covered with lifetime warranty.
• Made in Europe.
• Secure payments.
• Products in stock delivered in 24 hours to 7 working days.
SPECIFICATIONS
Notes:
Aluminum Female Axle version is NOT SUITABLE FOR PEGS USE
CrMo Female Axle version is NOT SUITABLE FOR PEGS USE ON DRIVE SIDE
Male Axle version is SUITABLE FOR PEGS USE
Only works with dropouts 6mm. and thicker. For thinner dropouts, a 14mm. ID washer is required.
The Female CrMo Axle version features 10mm. / 3/8" bolt on drive side with 14mm. OD section to fit the dropout.
The simplicity of the system is also great for customization. The Magneto cassette features ONLY ONE moving part, the assembly is as easy as it can get and reduces the overall weight significantly.
We are using heat treated CrMo caps instead of aluminum to be stiff and avoid wobble that can form over time and they are CNC machined outside and inside to achieve almost the same weight.
The shell is made of a much stronger 7075 Aluminum and features the sunken spoke holes that we created with our Classic Front Hub.
The driver, end caps and bolts use an anti-rust process that also gives the hub an awesome color finish.
Magneto Cassette Hub Specs:
Magneto magnetic engage system
7075-T6 Aluminum shell with recessed spoke holes design
Heat treated CrMo driver, caps & bolts with anti-rust treatment
Heat treated CrMo or Aluminum axle
Internally & externally machined CNC CrMo caps
Non-Drive Side Nylon Guard compatible with front hub
Drive Side Nylon guard available
Made in Europe
Weight Female CrMo axle: 422 gr / 14.8 oz.
Lacing Info:
Drive Side Flange Diameter: 48mm / 8mm Spokes
Driveside Ofsett: 29mm
Non-Drive Side Flange Diameter: 41mm / 8mm Spokes
Non-Drive Side Offset: 19mm
Spoke Lengths:
Magneto Cassette to Lunar Rim: 184mm Drive Side / 186mm Non-Drive Side
Magneto Cassette to Lunar X Lace Rim: 188mm Drive Side / 190mm Non-Drive Side
