Fuego Frame
Frames & Forks
Frames Fuego Frame
paypal visa maestro mastercard klarna
- Secure payments.
- Products in stock are delivered in 24 hours to 7 working days.

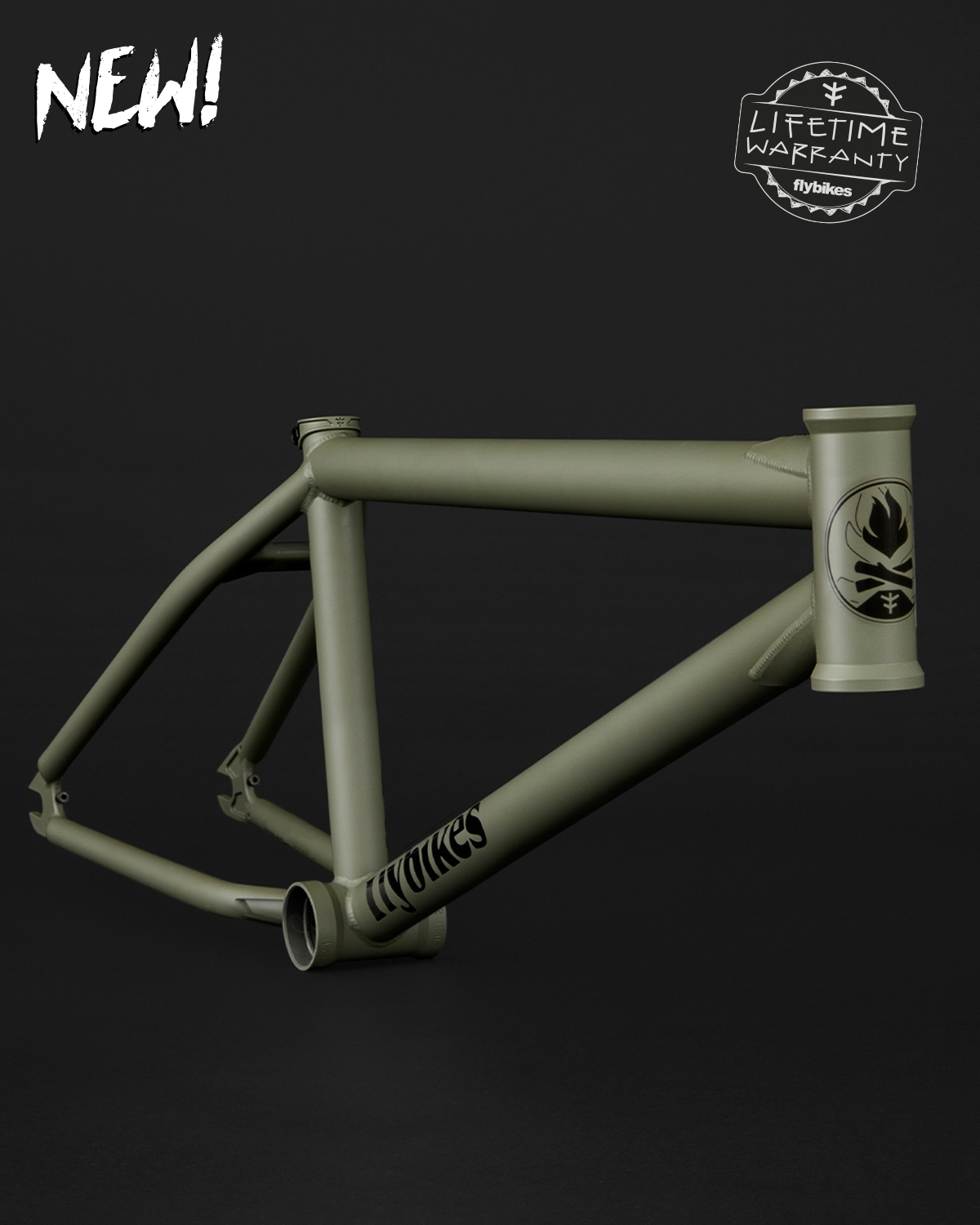

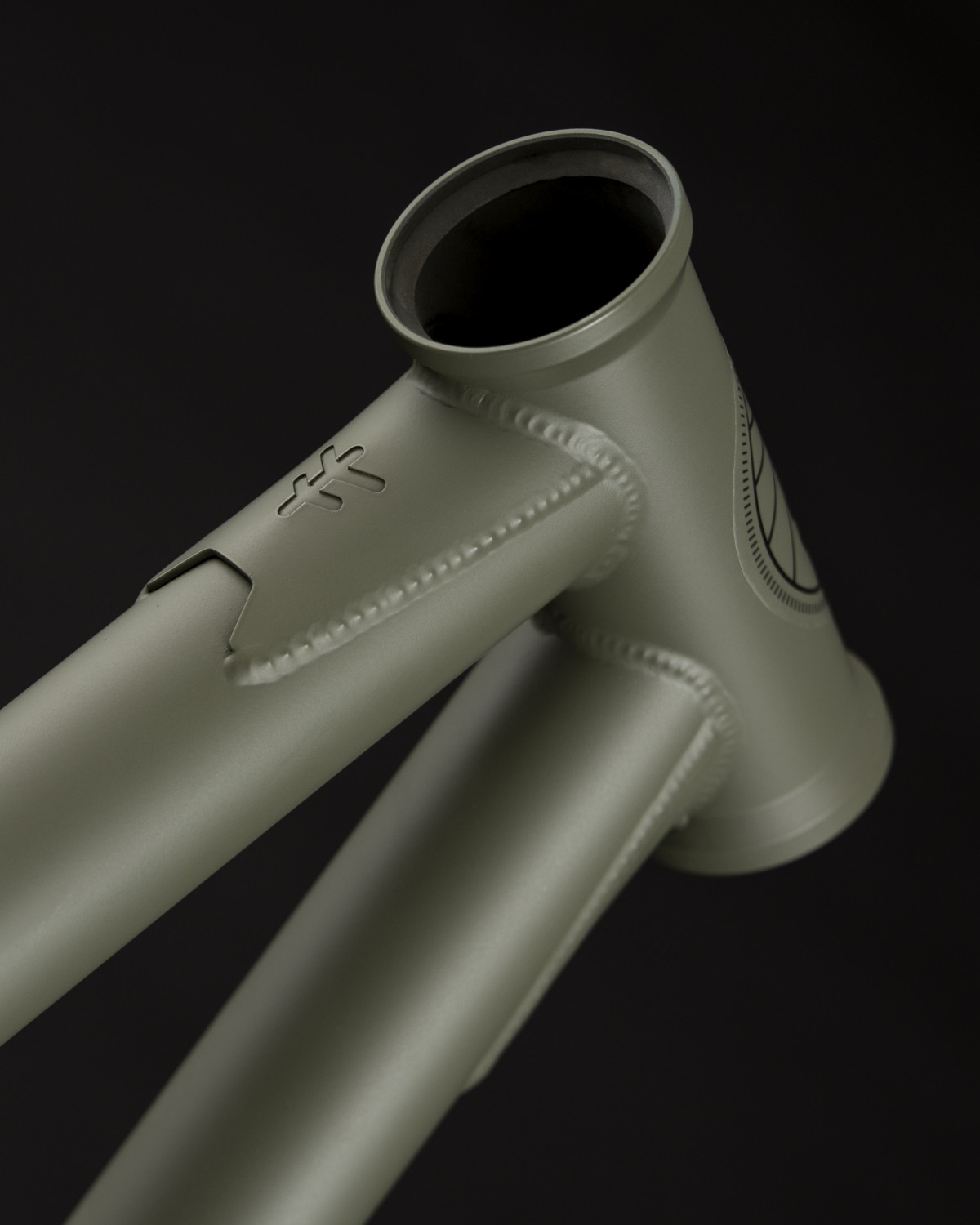

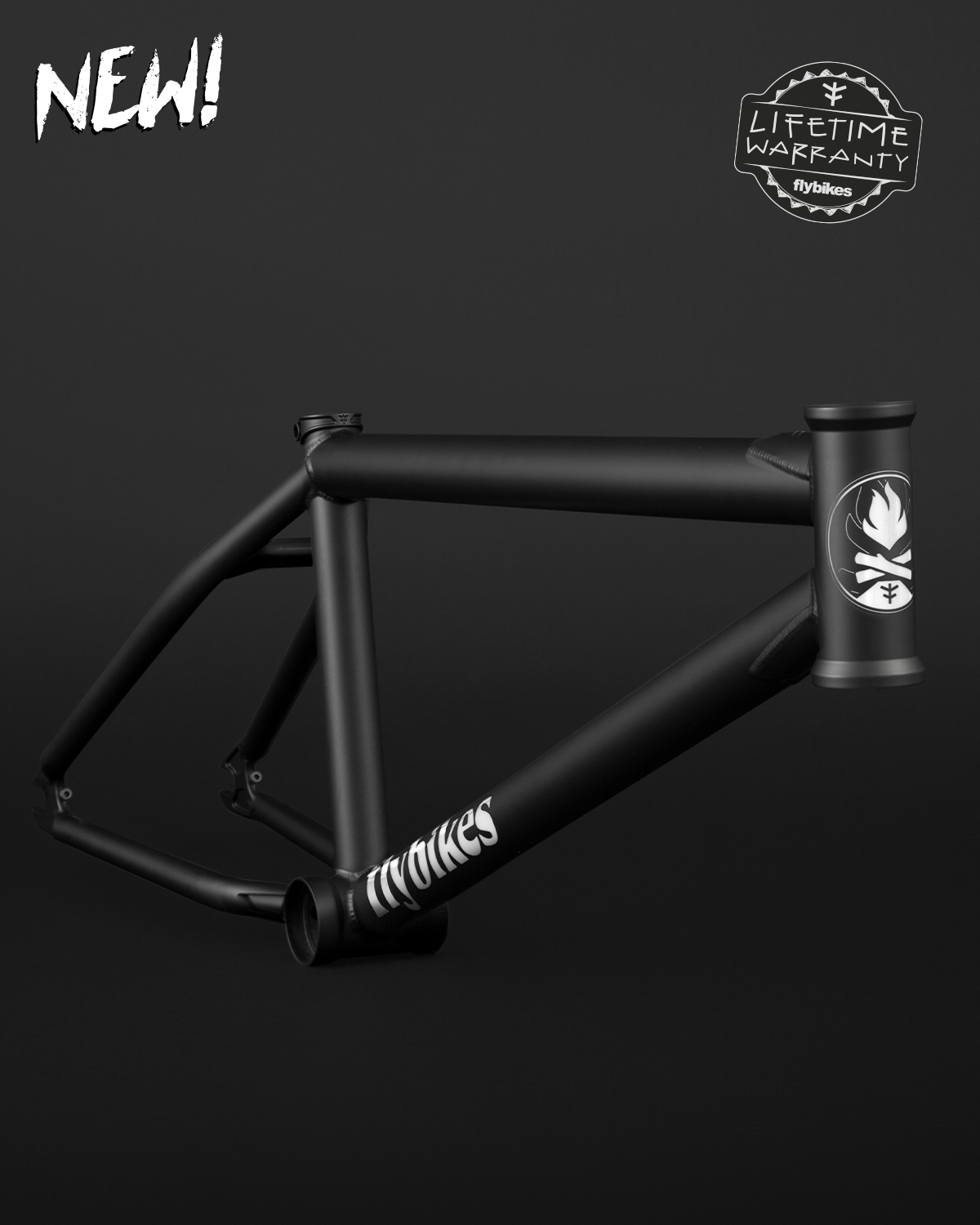

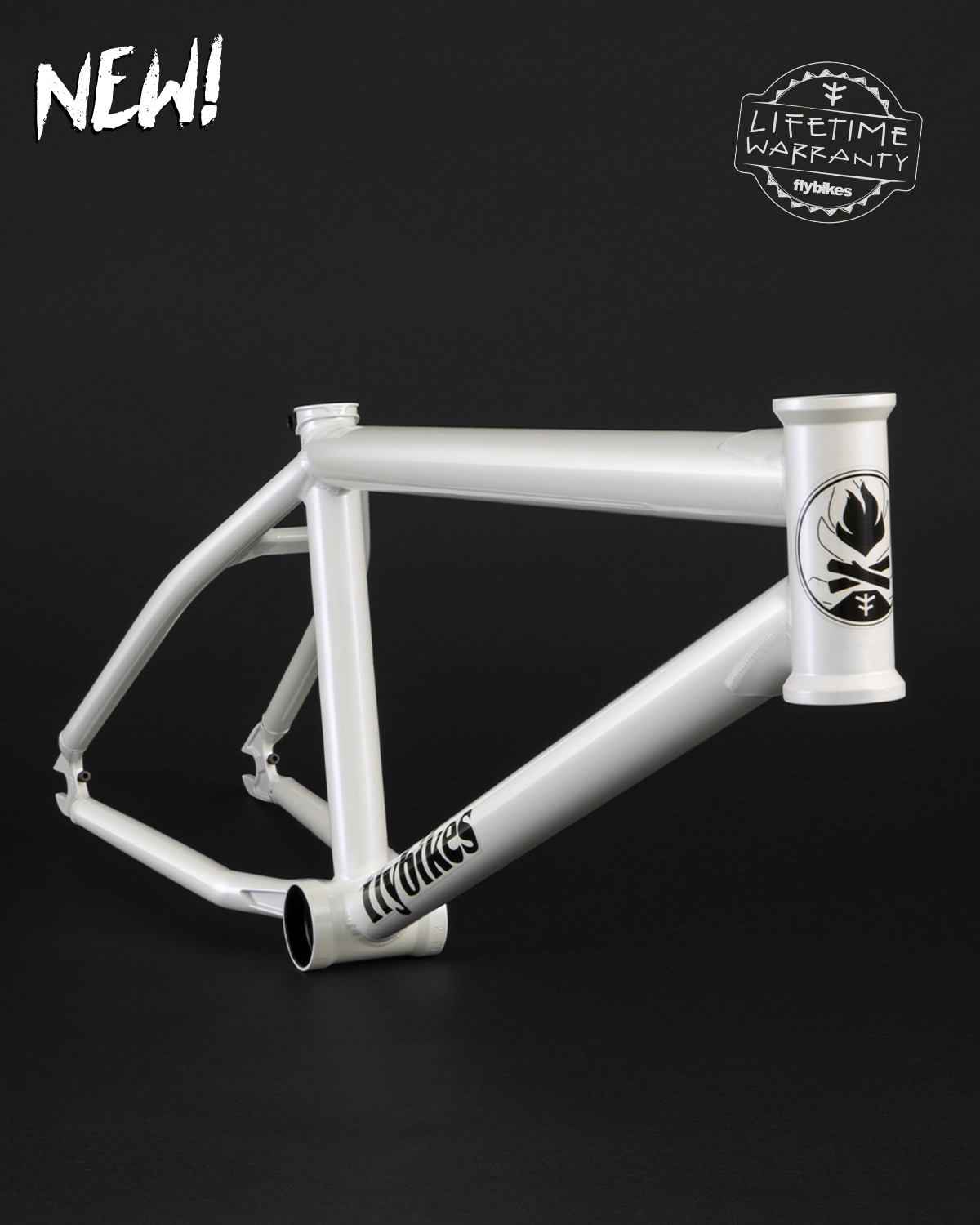

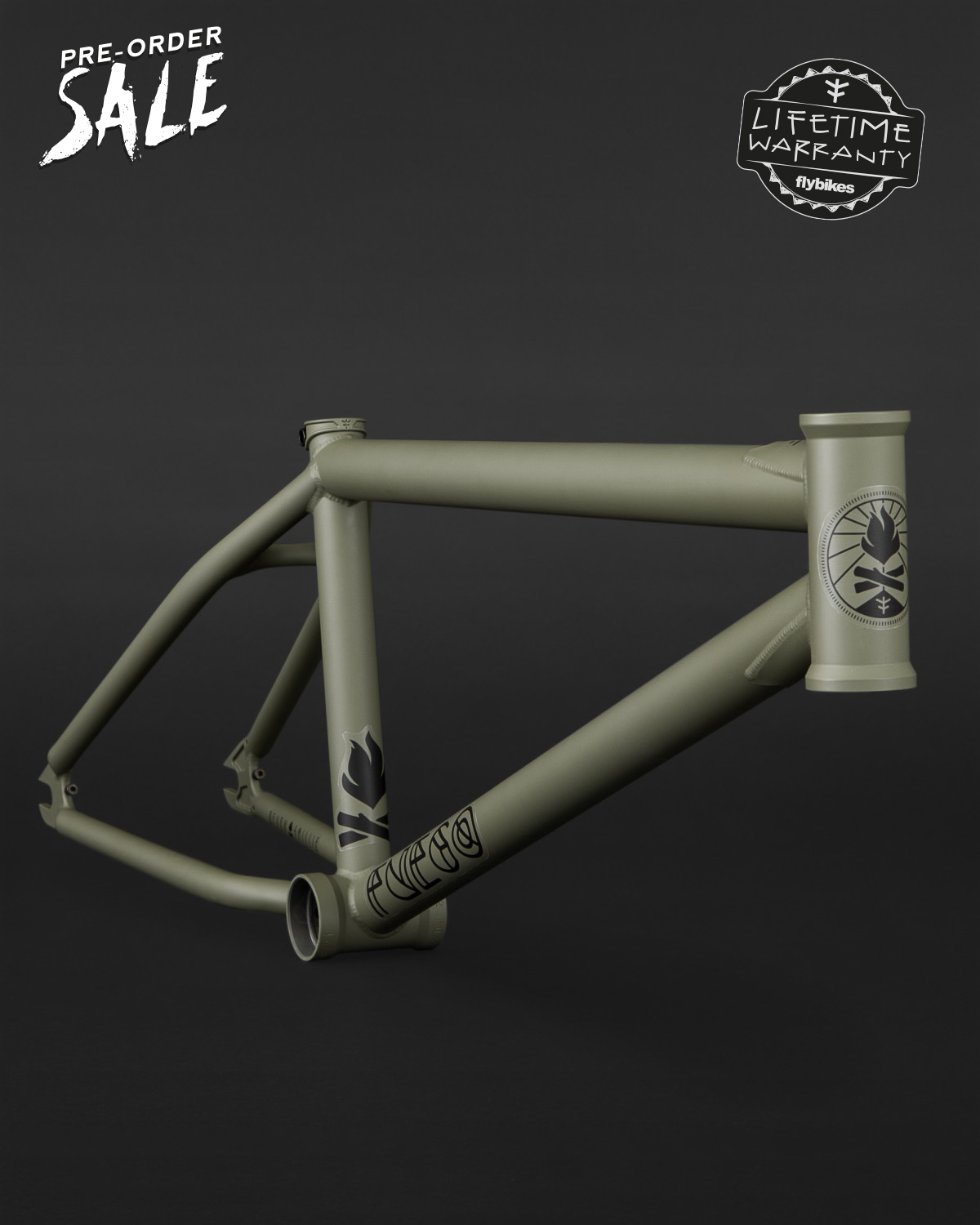

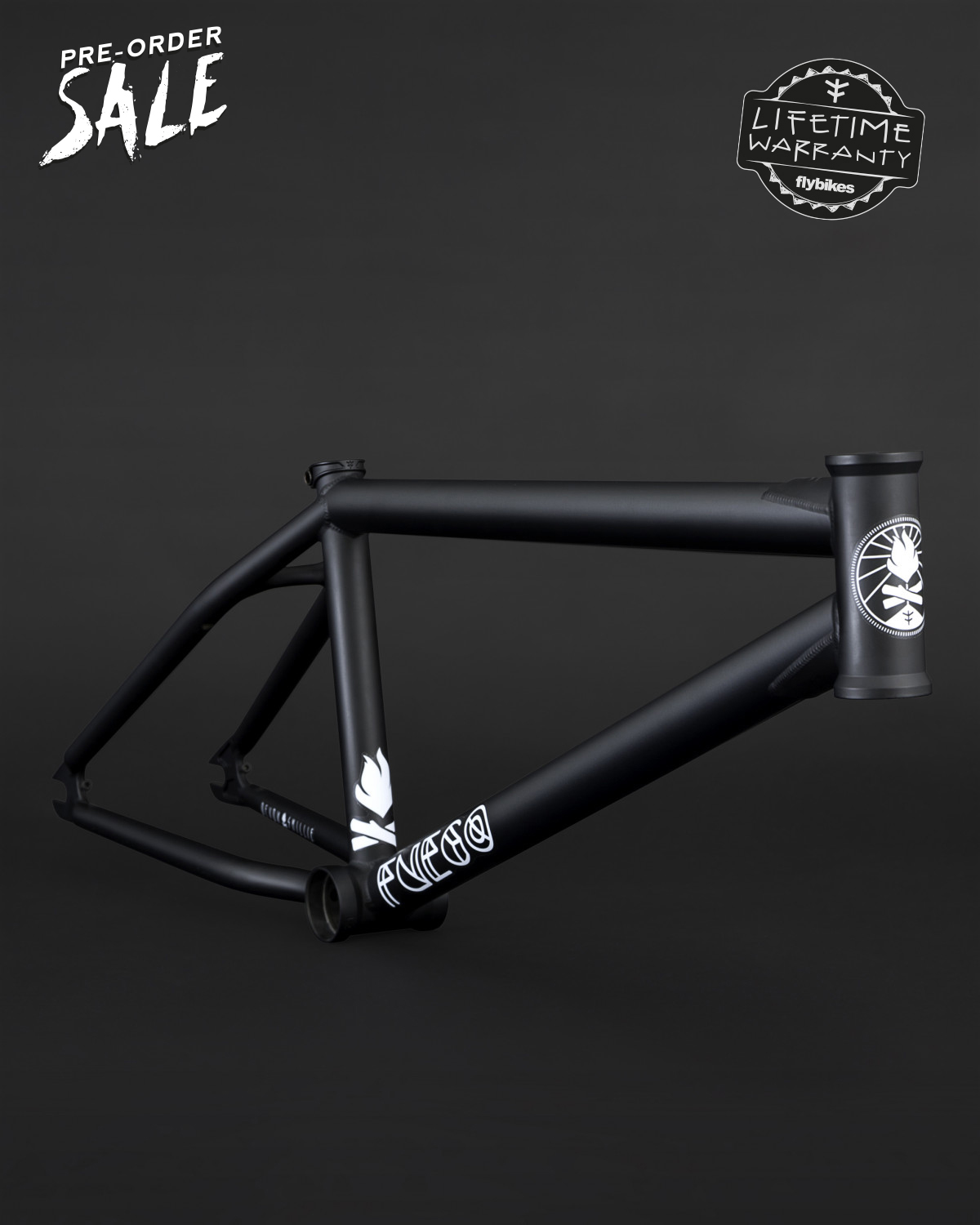

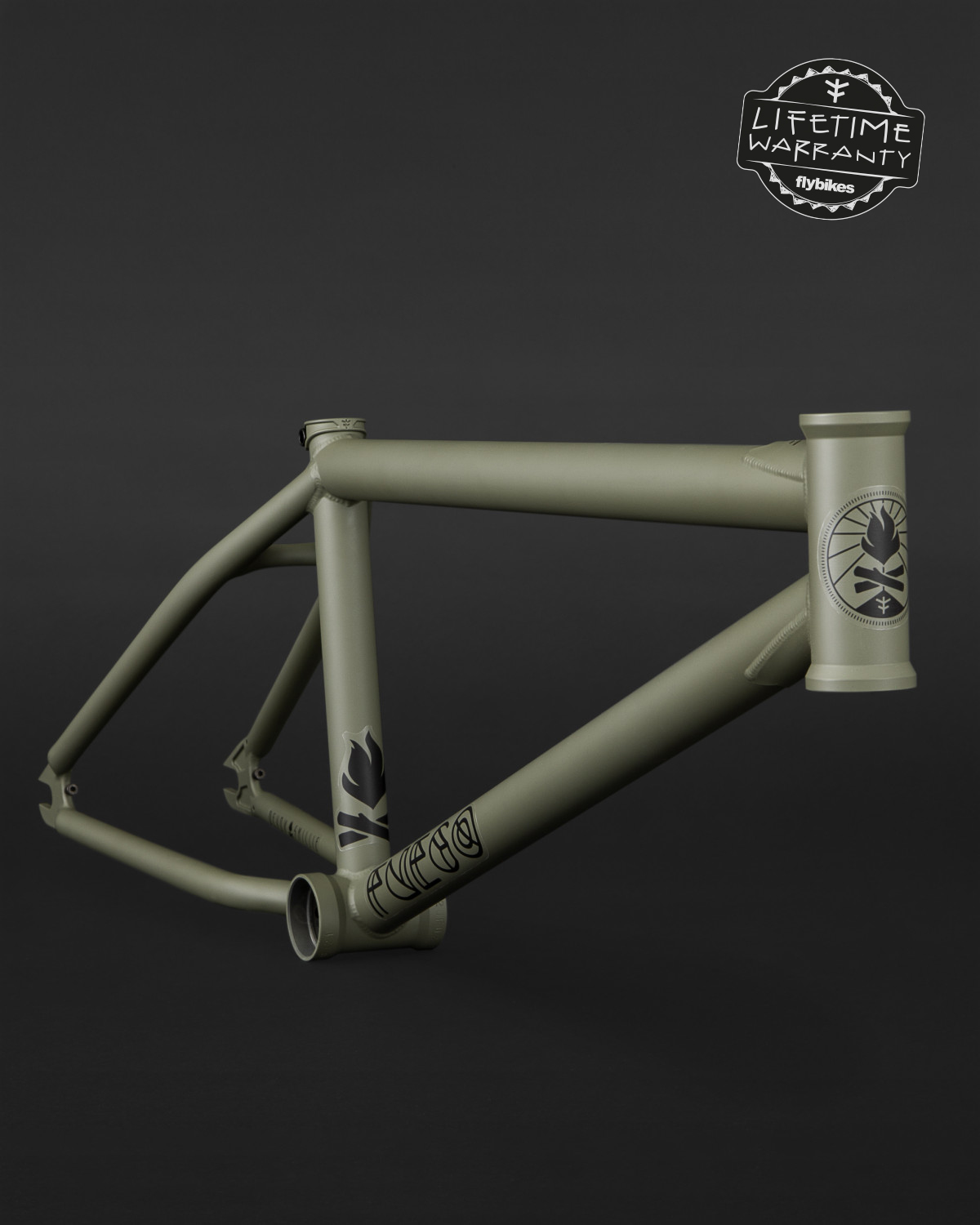

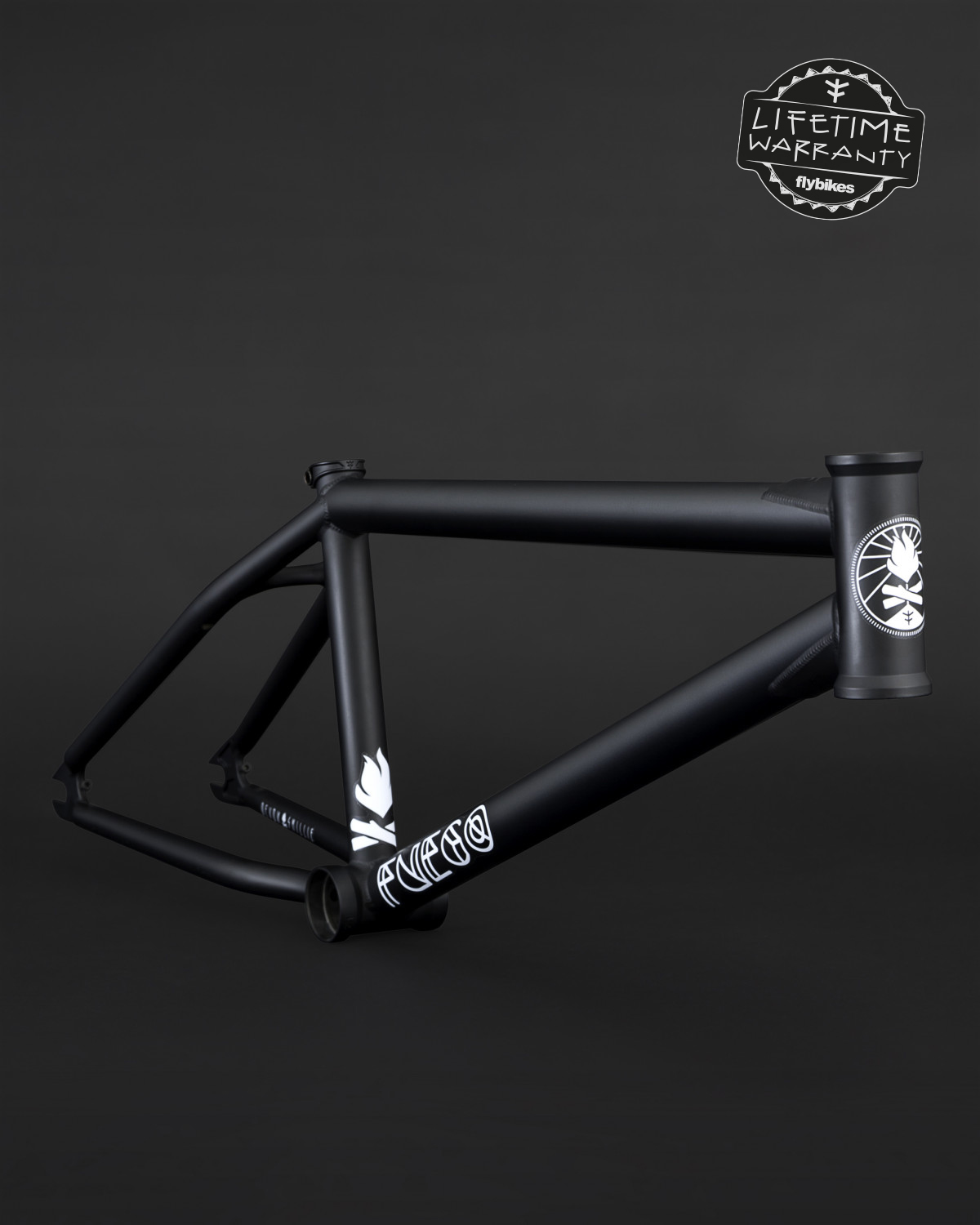

The latest version of the Devon Smillie signature frame takes the original geometry but utilizes new tubing specs that help reduce the overall weight of the frame without sacrificing any of the strength. It features internal and external gussets, multi-butted and tapered tubing, and Investment Cast seat post clamp and Dropouts with integrated chain tensioners.
- This product is covered with Lifetime Warranty.
- Brakeless version only.

SPECIFICATIONS

Fuego Frame Specs
  • Tubing Material
    4130 CrMo / Japanese Sanko Triple Butted

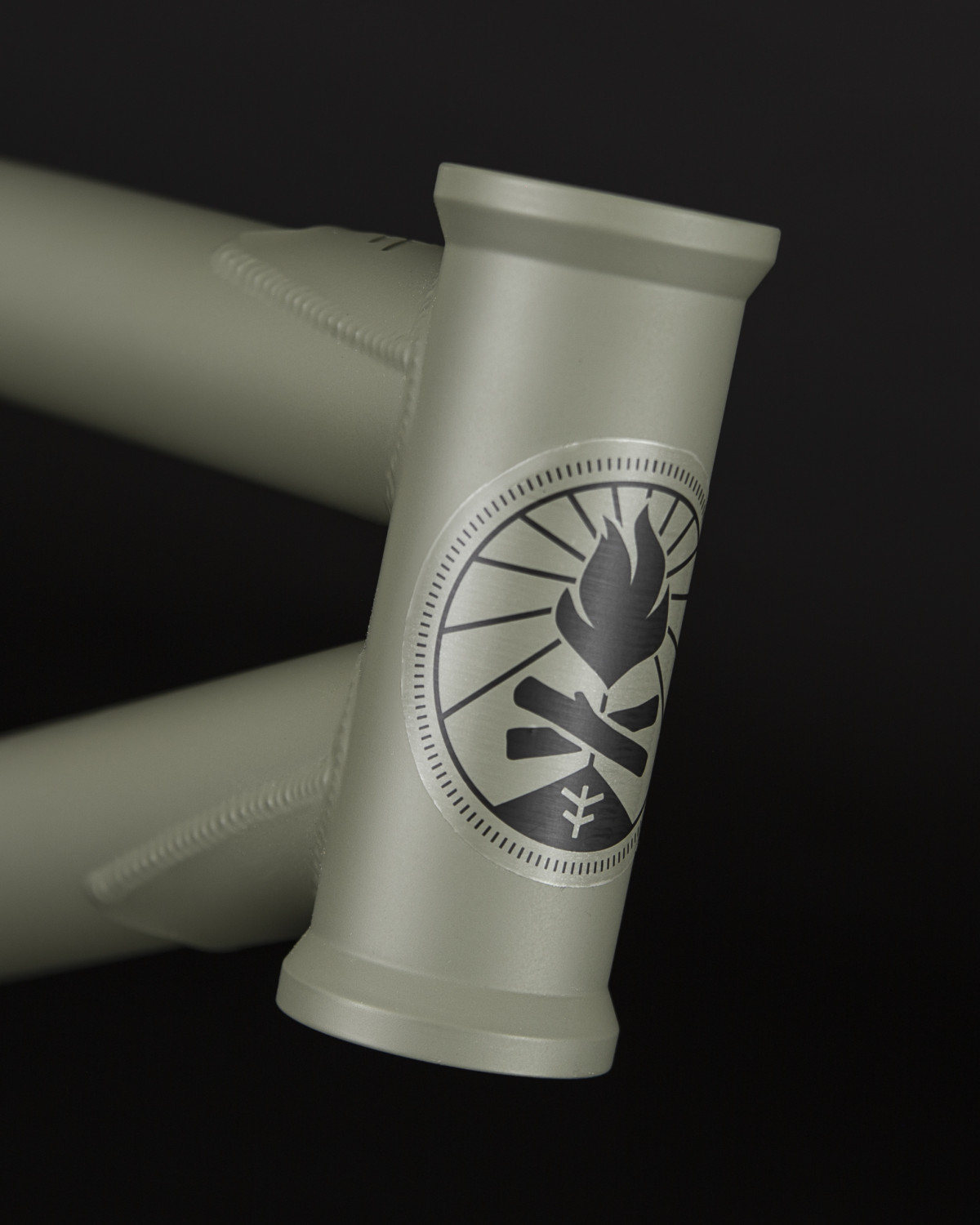

  • Headtube Material
    CNC Machined / 4130 CrMo / Heat Treated

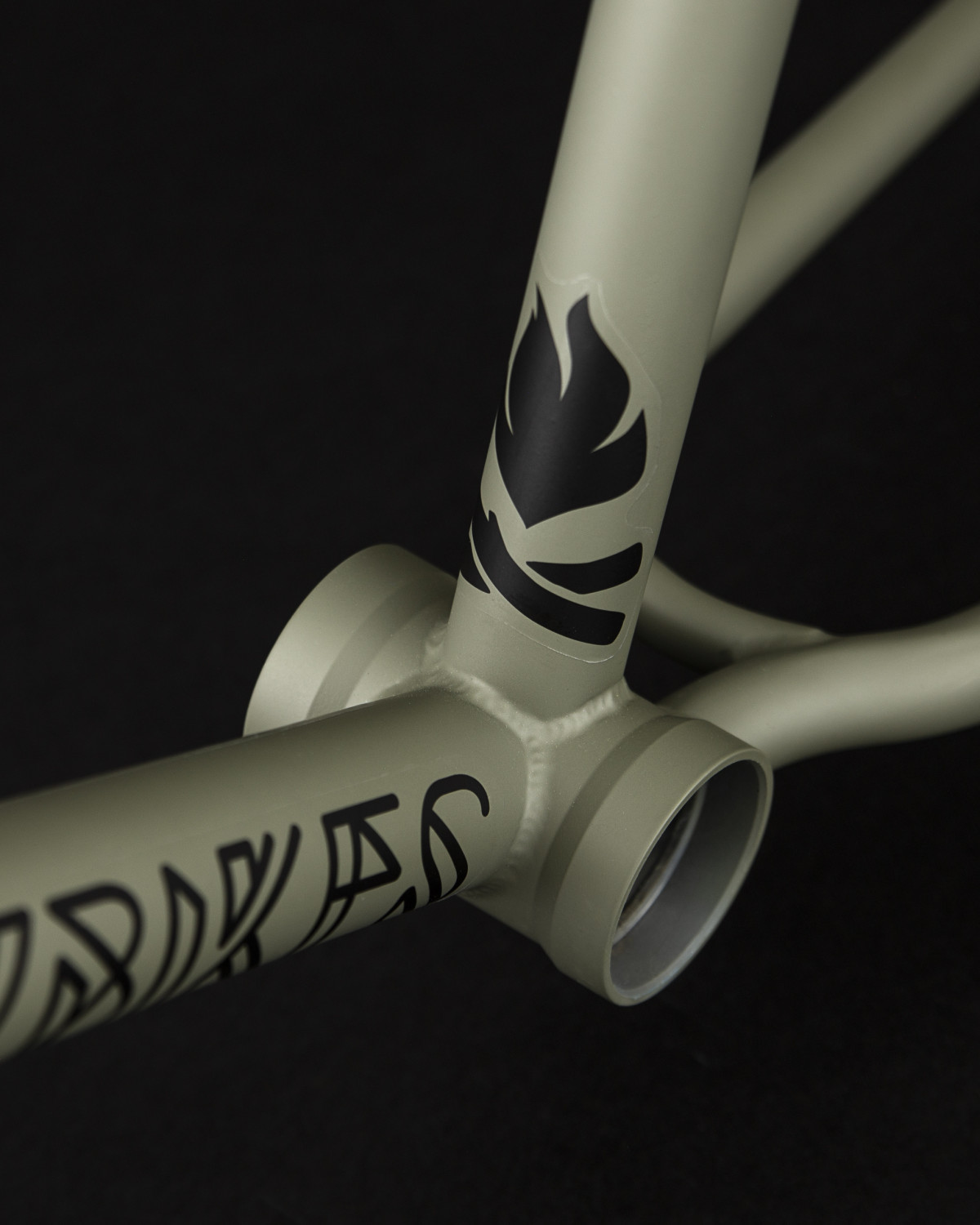

  • Bottom Bracket
    CNC Machined / 4130 CrMo / Heat Treated / Mid BB

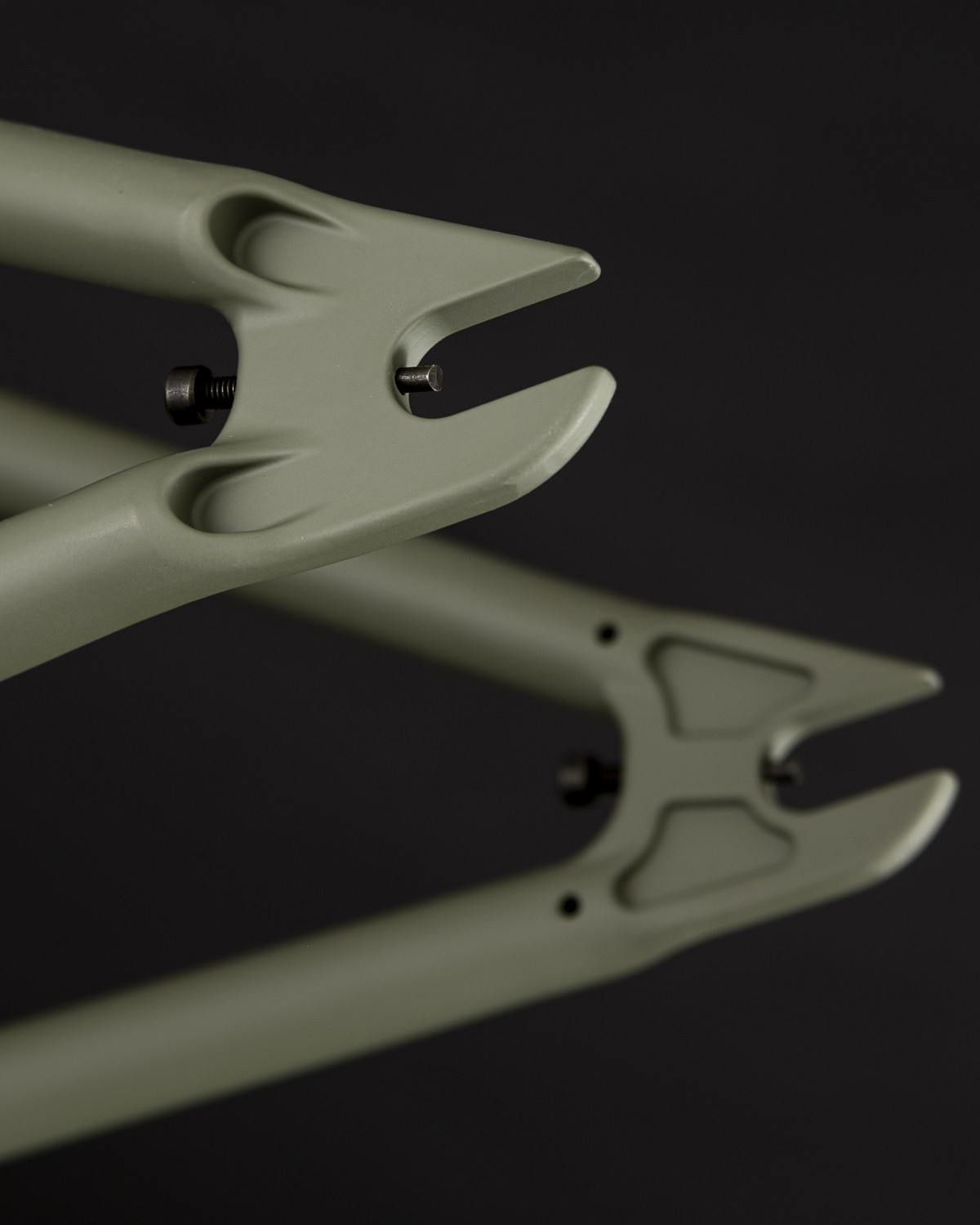

  • Dropouts Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seat Clamp Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Seatstays Bridge Material
    Invest Casting / 4130 CrMo / Heat Treated
  • Gussets Material
    Laser Cut / 4130 CrMo / Heat Treated
  • Top Tube
    20.6" / 21"
  • Head Tube
    75.5º
  • Seat Tube
    71º
  • Rear End
    12.8" Slammed
  • Standover
    9.25"
  • Bottom Bracket Height
    11.75"
  • Head Tube Height
    113 mm / 4.45"
  • Brake System
    Brakeless
  • Weight 21"
    2.305 kg / 5.08 lb
