Motosierra Bike
Bikes
Signature Custom Bikes Motosierra Bike
visa maestro mastercard klarna
Price for individual parts purchase: $2.275€ (Magneto/Lunar version)
You save $685 € (30% saving) on order
You save $1.003 € (44% saving) on preorder

• Delivered in 24 hours to 7 working days.
• 100% Secure payment.
• Easy Assembly with our 100% plastic-free recyclable packaging.

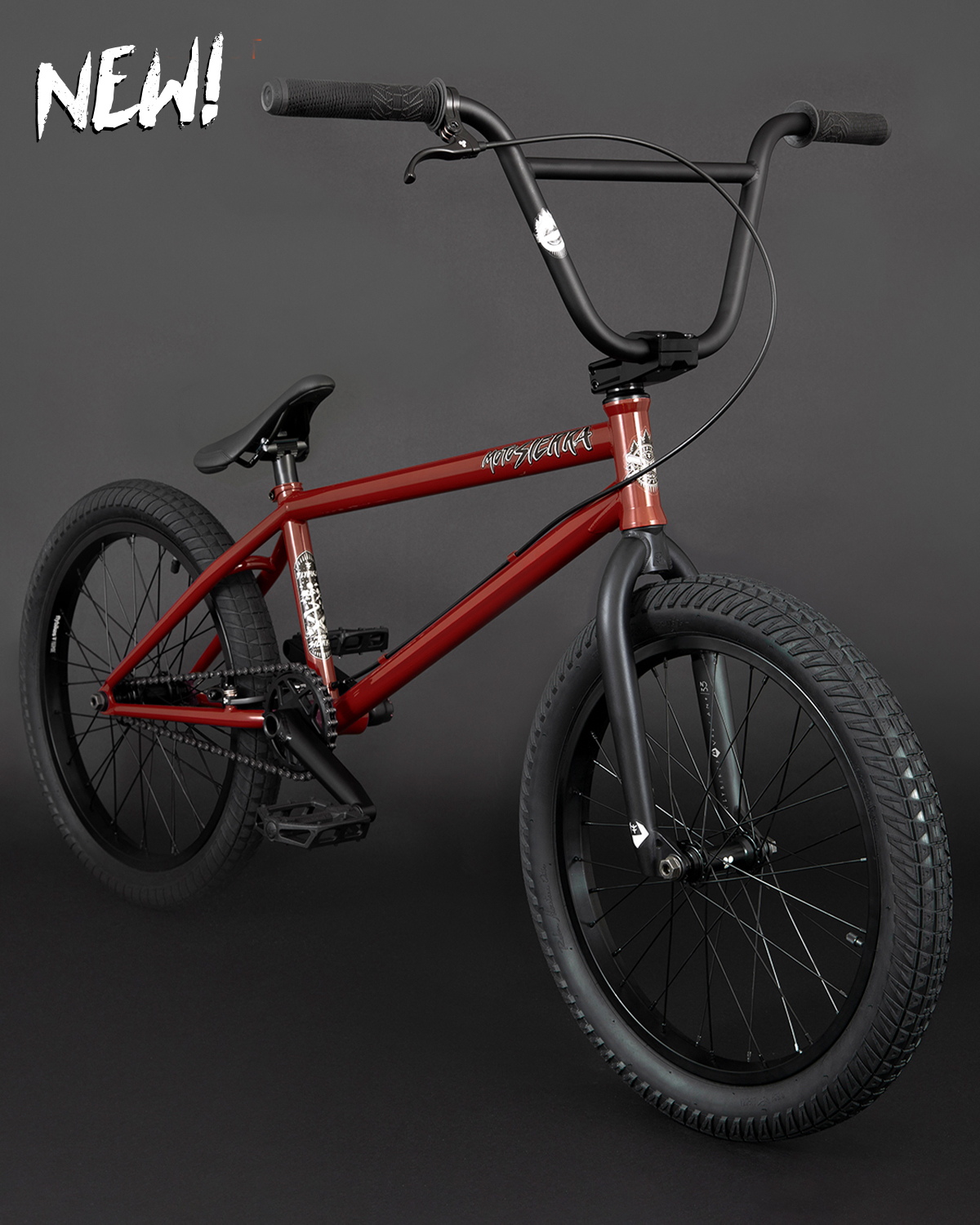

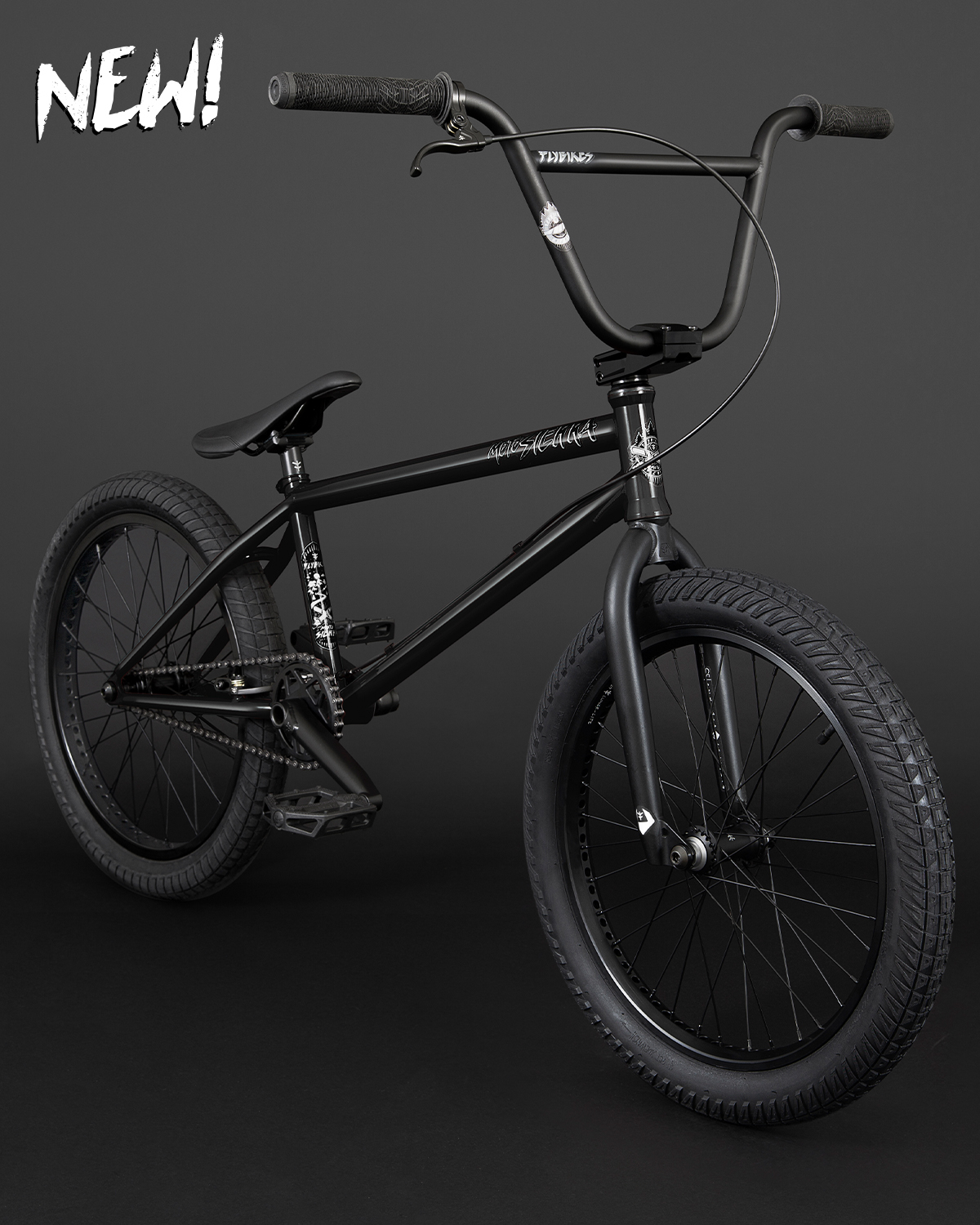

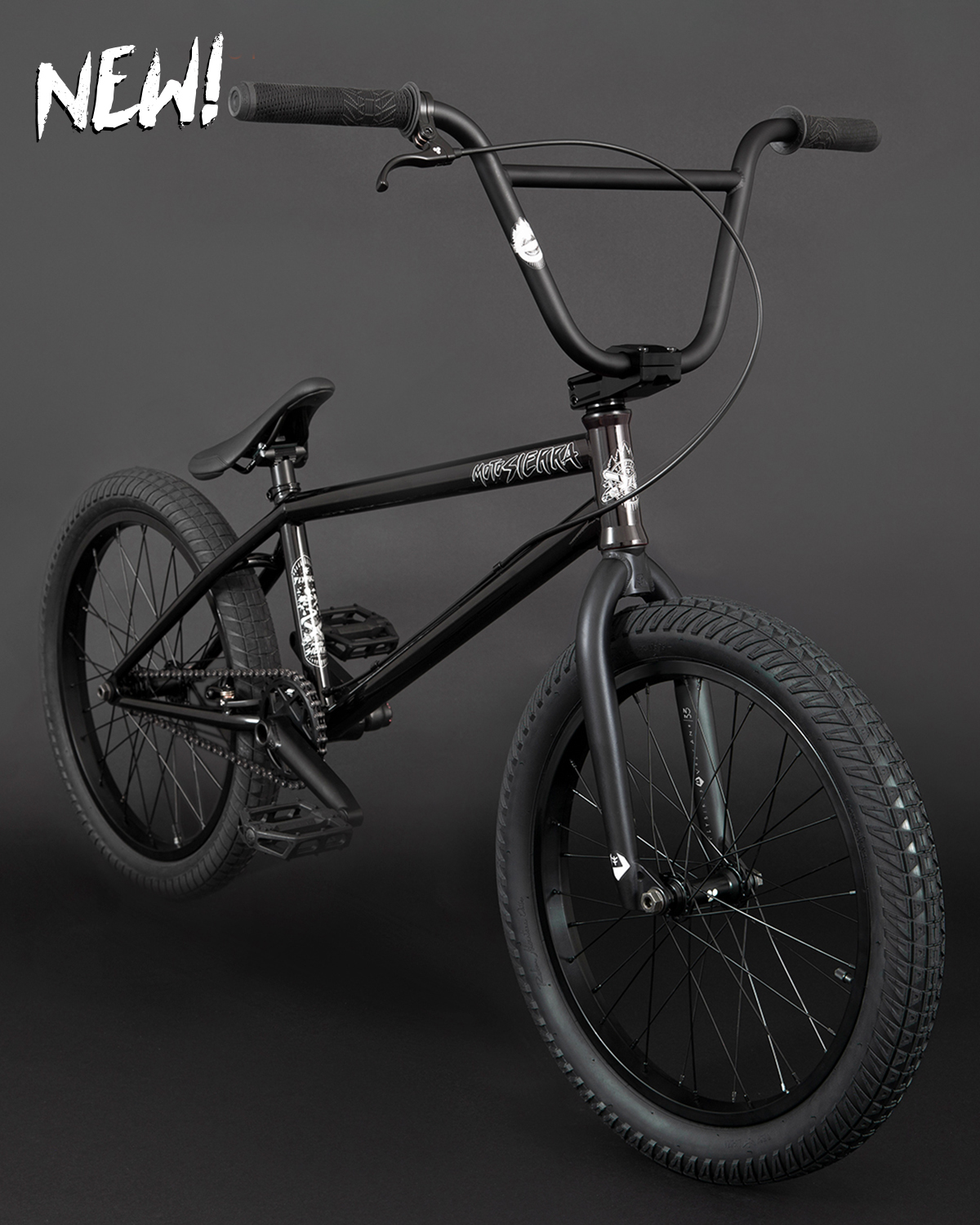

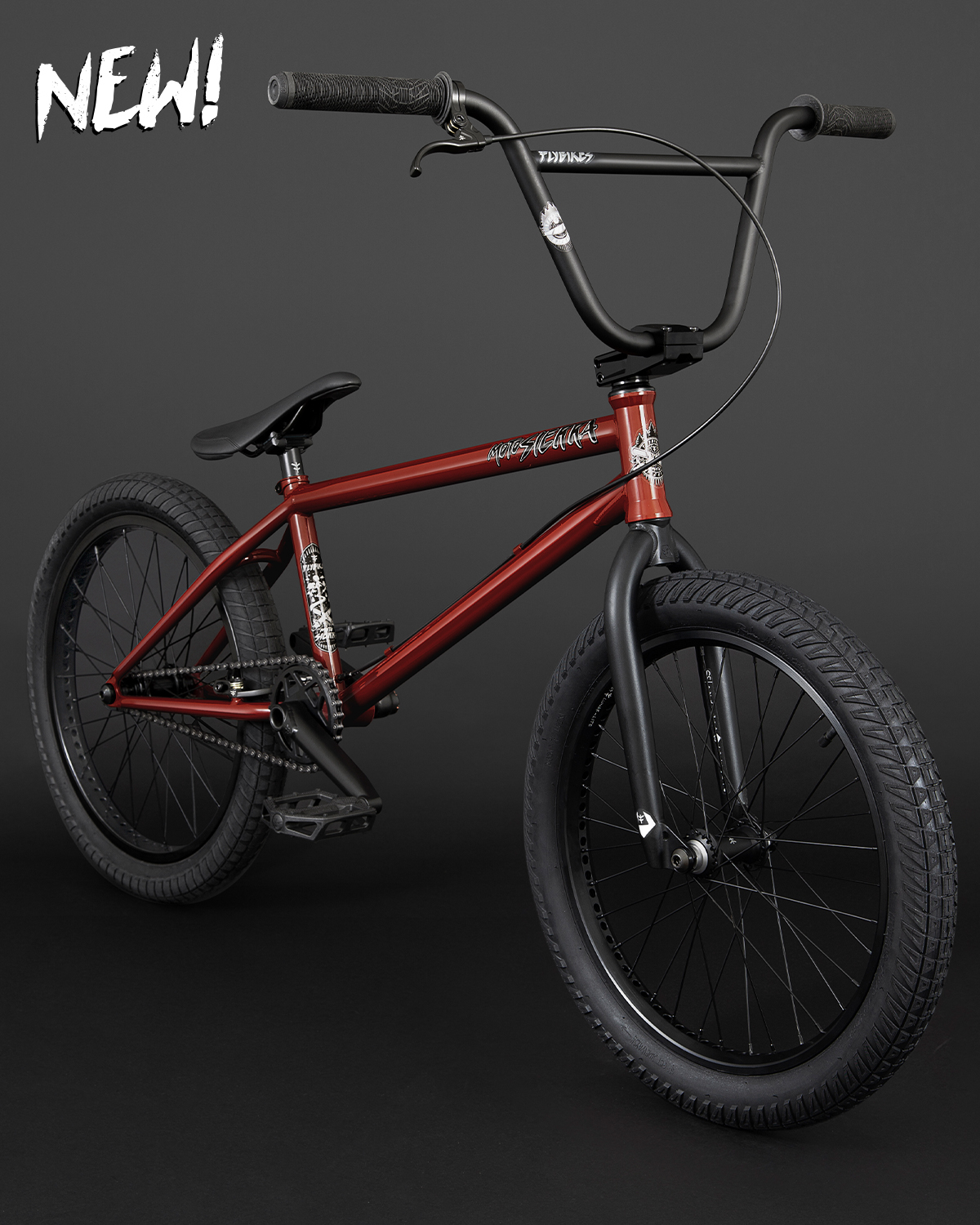

We've brought together all our trail team riders' preferences to build the sickest trail BMX out there. This Bicycle-Moto-X trail machine is made from Sergio Layos' signature Motosierra frame, Sierra bar, the Volcano steering line, Fly CNC Brake, and fully loaded with Ruben's top-notch parts. And guess what? We've even thrown in the badass Magneto Hubs laced with Lunar Rims option. Now we can ensure that it is the best Fly bike that we can build.

Signature bikes are fully customizable. Select the options that best suit your preferences, and if something else catches your eye:
1. Choose the options that align with your preferences and simply mention the desired change in the comments section during checkout.
2. The option will be applied if it´s available at the time of purchase.
3. If the chosen part has a higher price, you’ll receive a payment link by email. No refunds for products with lower price.

Note: The chain tensioner is not compatible with more than 24mm diameter hubs, like Trebol Cassette.

Note: LHD (Left-Hand Drive) and RHD (Right-Hand Drive) refer to the side where the drivetrain is located to protect your chain & sprocket when you grind.
RHD: Riders that mostly grind with the pegs on the left side.
LHD: Riders that mostly grind with the pegs on the right side.

Specs change notice: Models with early July shipping date include polished brake & lever.

SPECIFICATIONS

Motosierra Bike Specs
  • GEOMETRY:
  • TOP TUBE LENGTH
    21" / 21.4” / 21.8"
  • CHAIN STAY LENGTH
    14”
  • HEAD TUBE ANGLE
    74º
  • SEAT TUBE ANGLE
    71º
  • BB HEIGHT
    11.5”
  • STAND OVER HEIGHT
    9.25”
  • FORK OFFSET
    32 / 33 mm.
  • BAR RISE
    8.5 / 9"
  • BAR WIDTH
    29”
  • BAR BACKSWEEP
    10º
  • BAR UPSWEEP
  • _
  • TEAM VERSION SPECIFICATIONS:
  • Frame
    Motosierra / Full 4130 CrMo / Heat treated HS, BB / Invest Casting Heat Treated Dropouts
  • Fork
    Volcano 33 / Full 4130 CrMo / 1 Piece Steerer Tube CNC / Invest Casting Heat Treated dropouts
  • Bars
    Sierra / Full 4130 CrMo / Multiple Butted

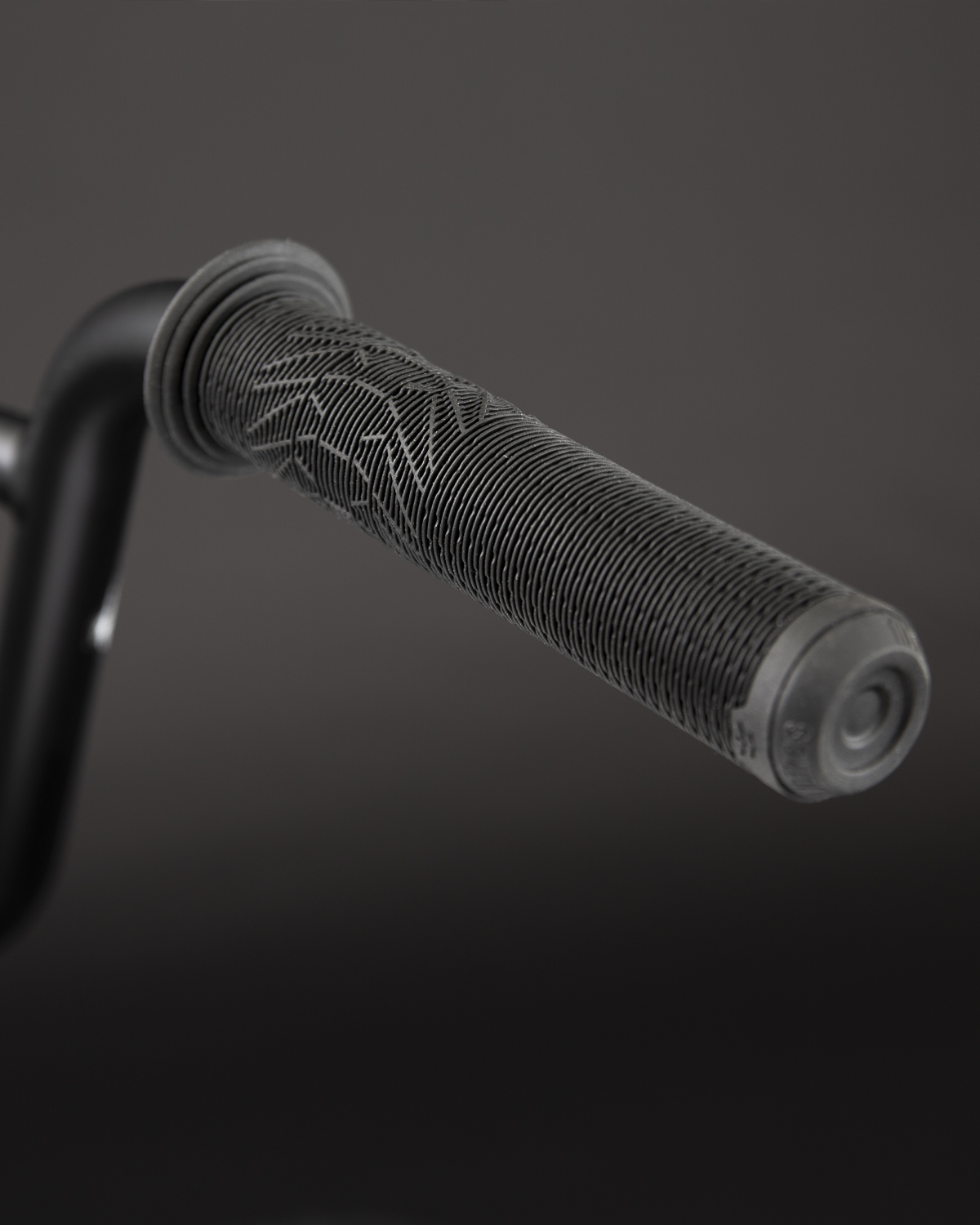

  • Grips
    Ruben 2 / 160 mm Long
  • Stem
    Volcano 25L / 57mm Reach / CNC Machined / 6061-T6 Aluminum

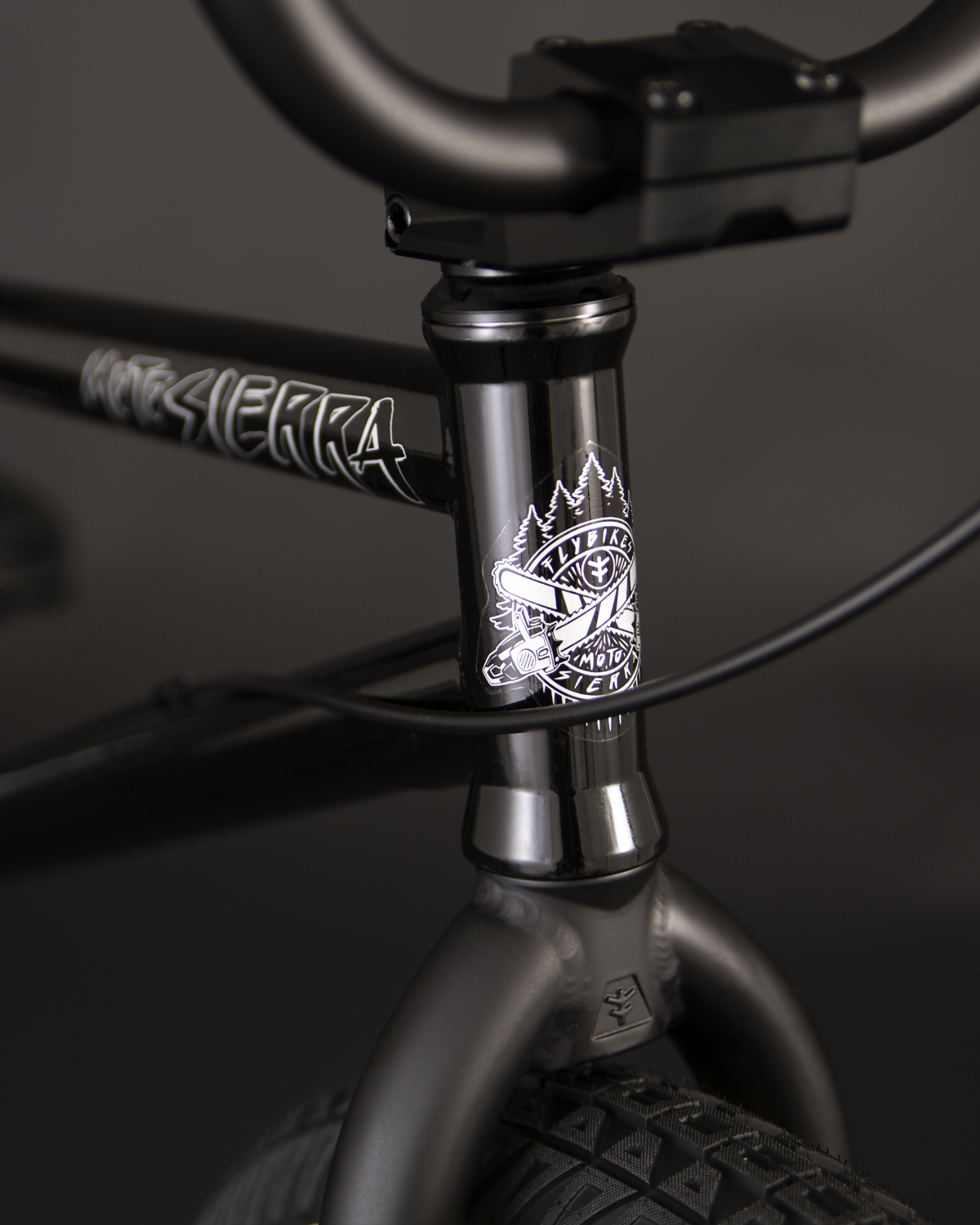

  • Headset
    Volcano 7 / Sealed Bearing / CNC Machined / 6061-T6 Aluminum
  • Lever
    Manual / CNC / 6061 T-6 Aluminum
  • Brake
    Manual OG / CNC / 6061 T-6 Aluminum

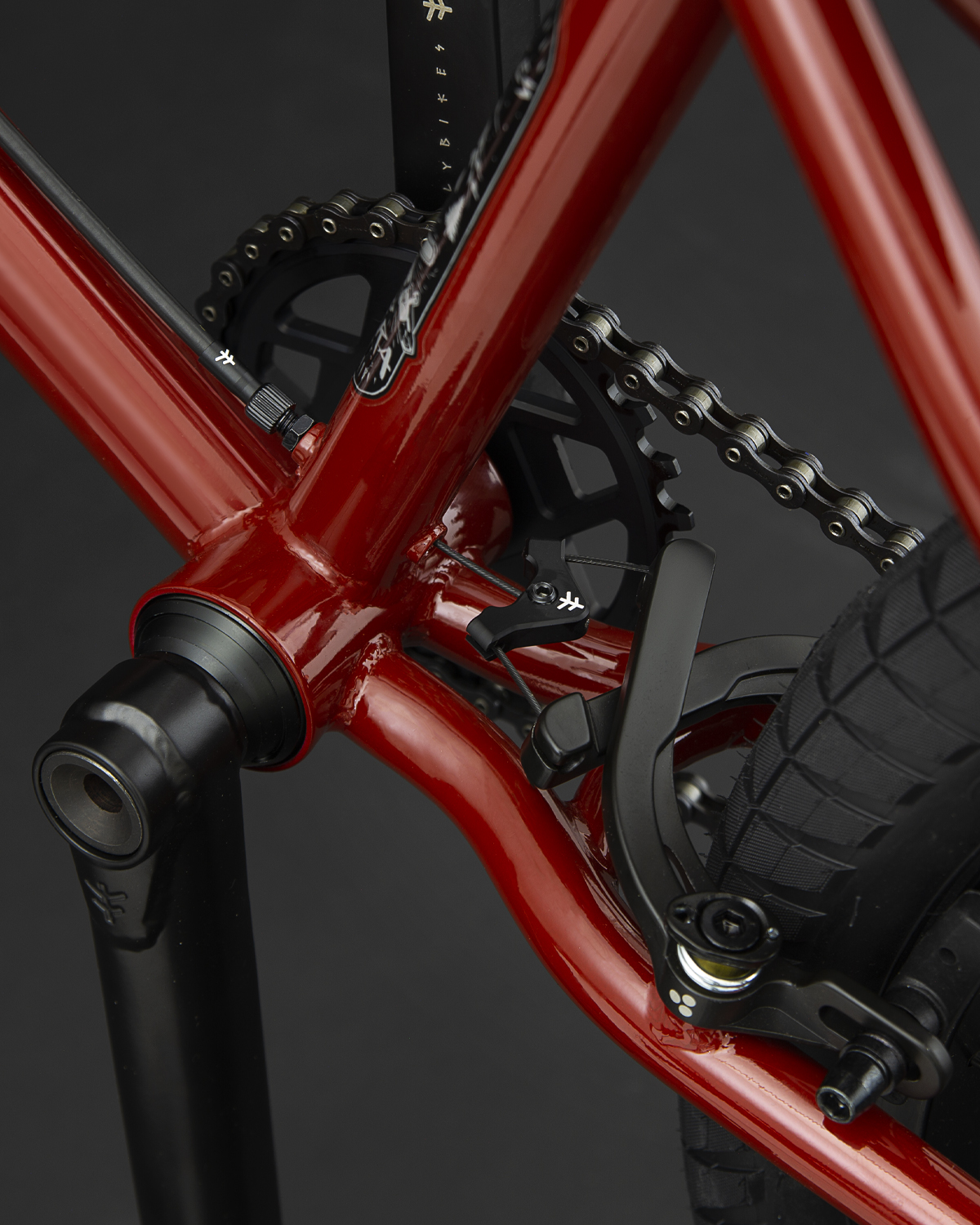

  • Cranks
    Dolmen 175 mm. / 4130 CrMo / 2.5p Construction / 1p Invest Casting Arm
  • Bottom Bracket
    Rotar Mid 22mm. / Sealed Bearing
  • Sprocket
    Tractor TT / CNC Machined / 7075-T6 Aluminum / 30T
  • Pedals
    Ruben Graphite / Nylon - Fiberglass Compound
  • Chain
    Tractor / 4130 CrMo Heat Treated / Hollow Pins Chromium Treatment / 74 Links
  • Tires
    Ruben Ligera 2.40 Front / Fly Ruben 2.25 Rear / 60 TPI / 120 PSI

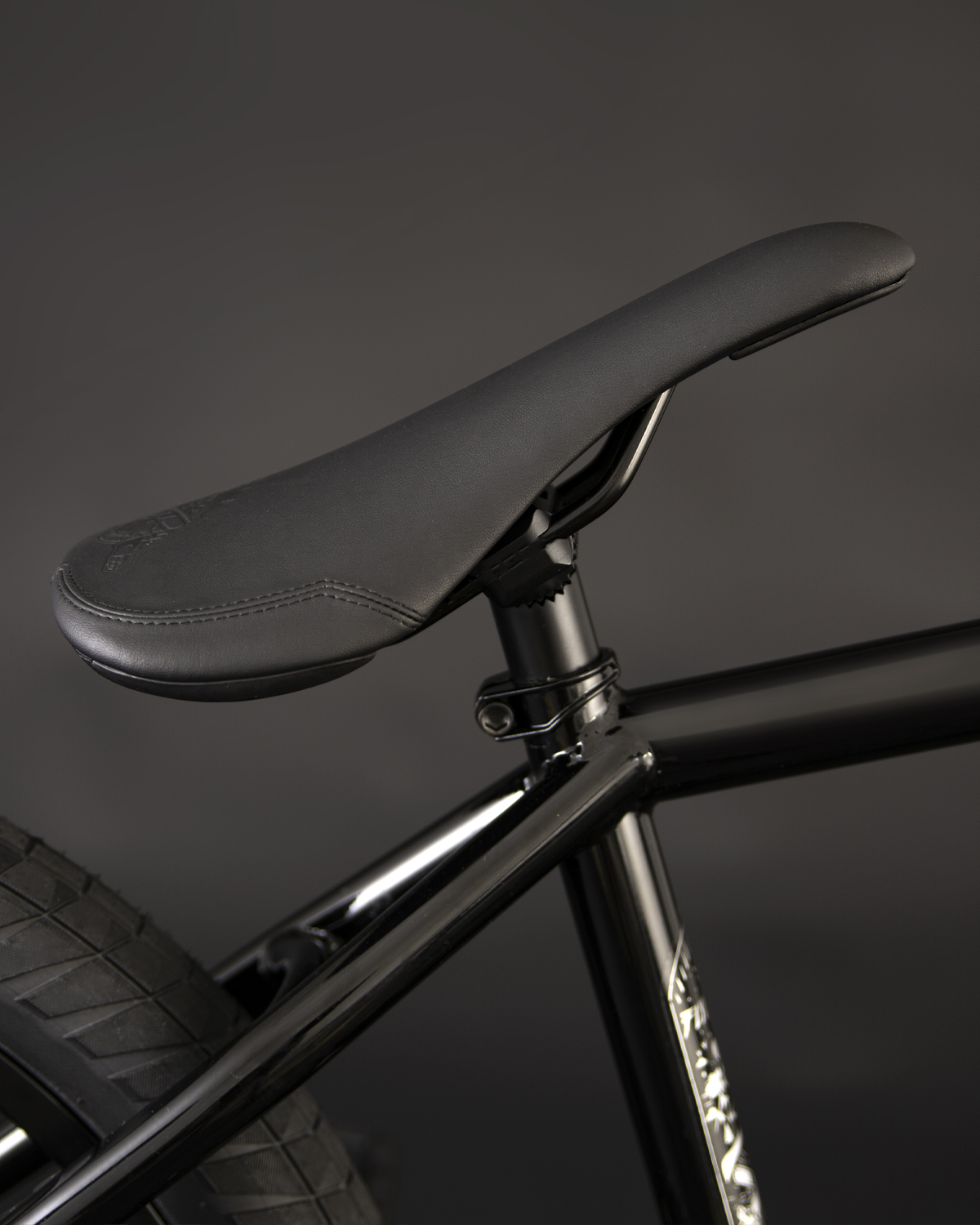

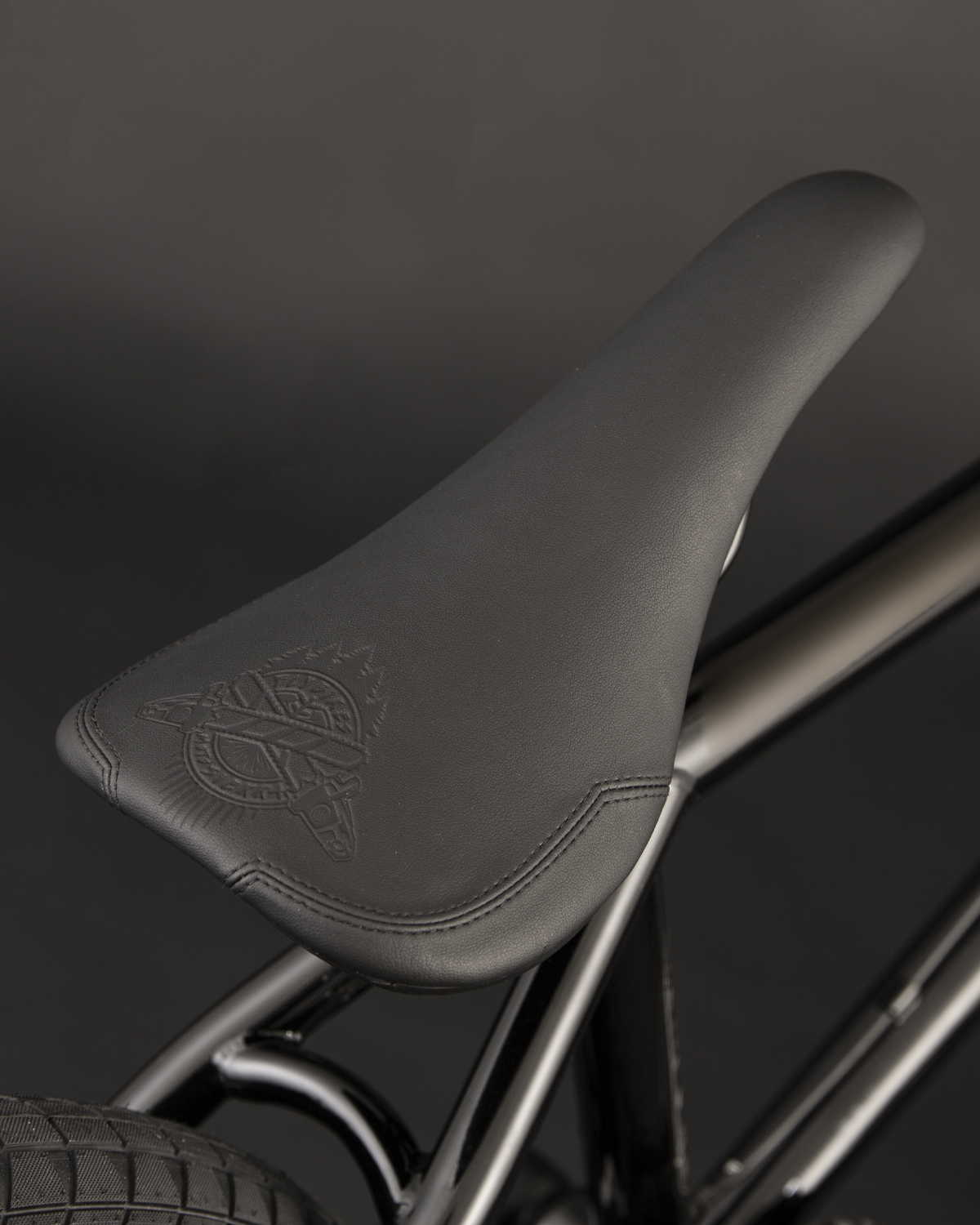

  • Seat
    Motosierra Seat / 100% Synthetic Leather / 7 mm Thickness
  • Post
    Motosierra Rail Post / CNC Machined / 6061-T6 Aluminum / 150 mm Long
  • Rims
    Lunar Rear / Lunar Lite Front / Double Wall / 6061-T6 Aluminum / Flash Welded
  • Front Hub
    Magneto / Sealed Bearing / 3/8” Alu Female Axle / 36H
  • Rear Hub
    Magneto / Sealed Bearing / 3/8” Alu Female Axle / 36H / 9T
  • Weight 21" / 9" version
    11.45 kg. / 25.2 lb.
  • _
  • PRO VERSION SPECIFICATIONS:
  • Frame
    Motosierra / Full 4130 CrMo / Heat treated HS, BB / Invest Casting Heat Treated Dropouts
  • Fork
    Fly 32 Offset / Integrated cone shape design / Full 4130 CrMo / 1 piece steer tube
  • Bars
    Fly / Full 4130 CrMo
  • Grips
    Fly Ruben 2 / 160 mm Long
  • Stem
    Fly Volcano 25mm Rise / 50mm Reach / CNC Machined / 6061-T6 Aluminum
  • Headset
    Trebol / Sealed Bearing / CNC Machined / 6061-T6 Aluminum
  • Lever
    Generic Inged / Forged / 6061 T-6 Aluminum
  • Brake
    Trebol Springhanger / Forged / 6061 T-6 Aluminum
  • Cranks
    Trebol 3Pc / 4130 CrMo / 170 mm Arm Length
  • Bottom Bracket
    Mid / Sealed Bearing
  • Sprocket
    Fly Tractor TT / CNC Machined / 7075-T6 Aluminum / 29T
  • Pedals
    Fly Ruben Graphite / Nylon - Fiberglass Compound
  • Chain
    512 Type / 74 Links
  • Rims
    Fly Piramide / Double Wall / 6061-T6 Aluminum
  • Front Hub
    Trebol / Sealed Bearing / 3/8” Female Axle / 36H
  • Rear Hub
    Trebol / Sealed Bearing / Female Axle / 36H / 9T
  • Tires
    Fly Ruben Ligera 2.40 Front / Fly Ruben 2.25 Rear / 60 TPI / 120 PSI
  • Seat
    Fly Motosierra Seat / 100% Synthetic Leather
  • Post
    Fly Motosierra / CNC Machined / 6061-T6 Aluminum / 180 mm Long
  • Disclaimer:
    Information provided is subject to change without prior notice. We are not liable for errors or omissions.
